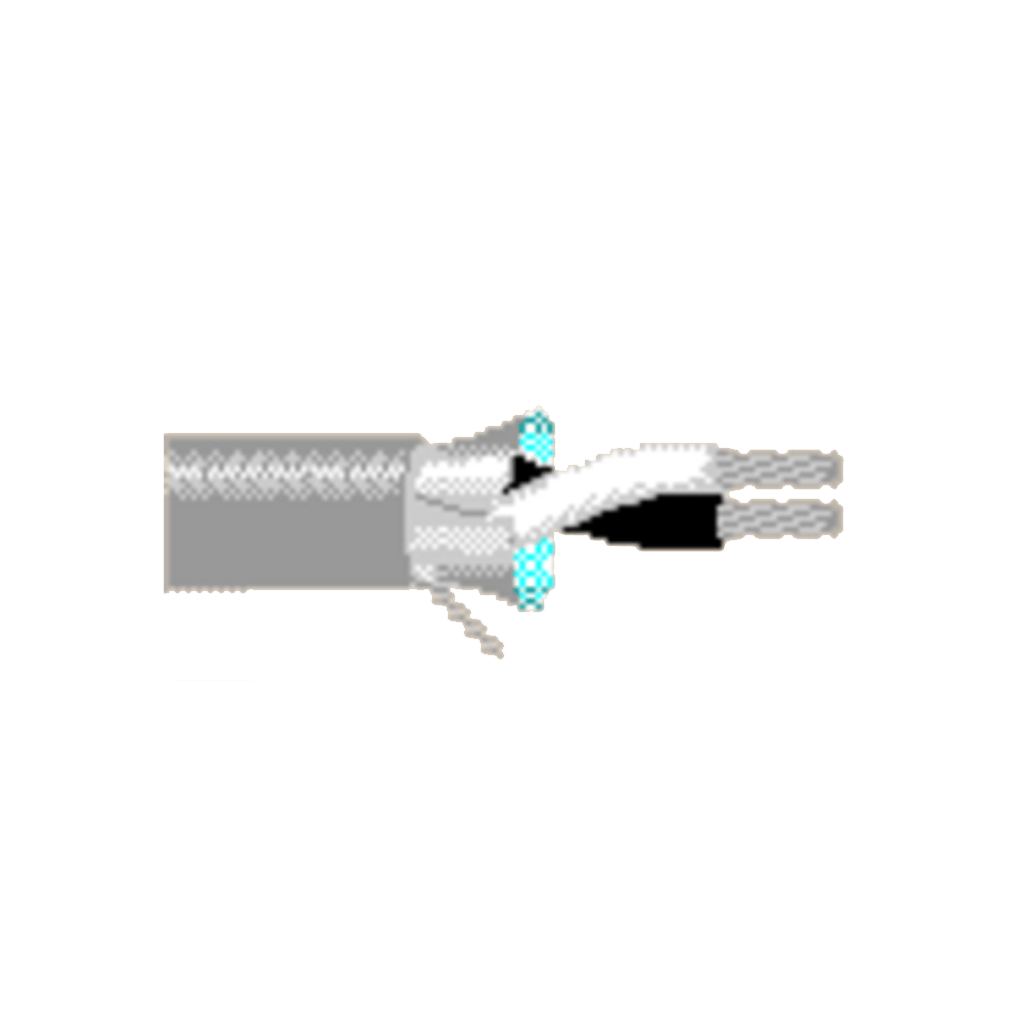

BELDEN 9452
Microphone Cable, 2C #24 Str TC, Noise reducing tape, O/A Foil, PVC Jacket
Product Description
Microphone Cable, 2 Conductor 24 AWG (19 x 36) Tined Copper (High conductivity), PE Insulation, Noise reducing tape, Overall Beldfoil® Shield, PVC Jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PE – Polyethylene | 0.008 in (0.20 mm) | 0.04 in (1.0 mm) | Black, Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | |
| Tape | Textile (Conductive) | 100% | 24 AWG (19×36) TC | |
| Tape | Bi-Laminate (Alum+Poly) | 100% | ||
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.135 in (3.43 mm) | ||
