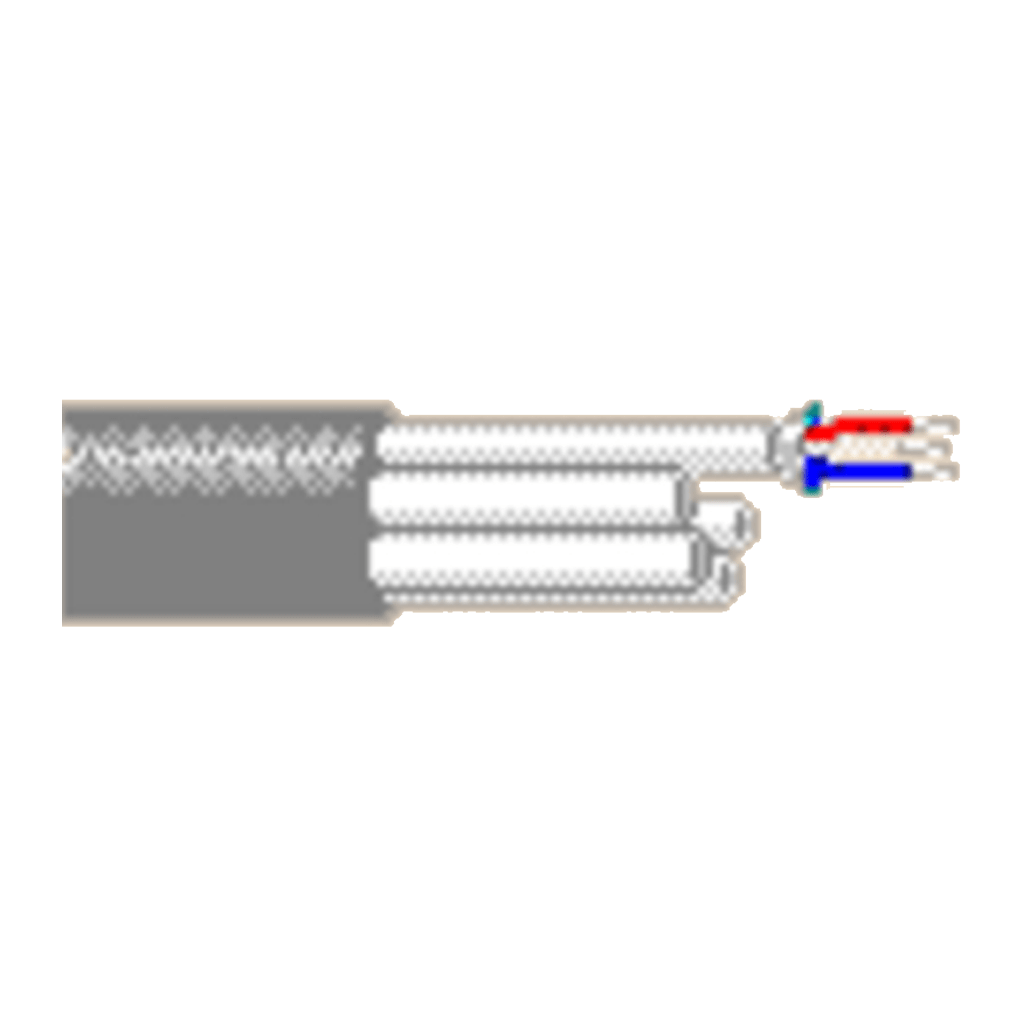

BELDEN 9772
Audio & Instrumentation, 12 Triads 22 AWG (36C) TC, Individually Jacketed
Product Description
12 Individually jacketed triads 22 AWG stranded (7×30) TC conductors, polypropylene insulation, 22 AWG stranded TC drain wire, overall PVC jacket
Technical Specifications
| Insulation | |||
| Element | Material | Nom. Insulation Diameter | Color Code |
| Triad(s) | PP – Polypropylene | 0.046 in mm | Black, Red, Green, Black, Red, Green, Yellow, Blue, Brown, Orange, Grey, Violet, Black/Black, Red/Black, Green/Black |
| Inner Shield | |||
| Shield Type | Material | Coverage | Drainwire Type |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC |
| Inner Jacket | |||
| Material | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.150 in (3.81 mm) | ||
