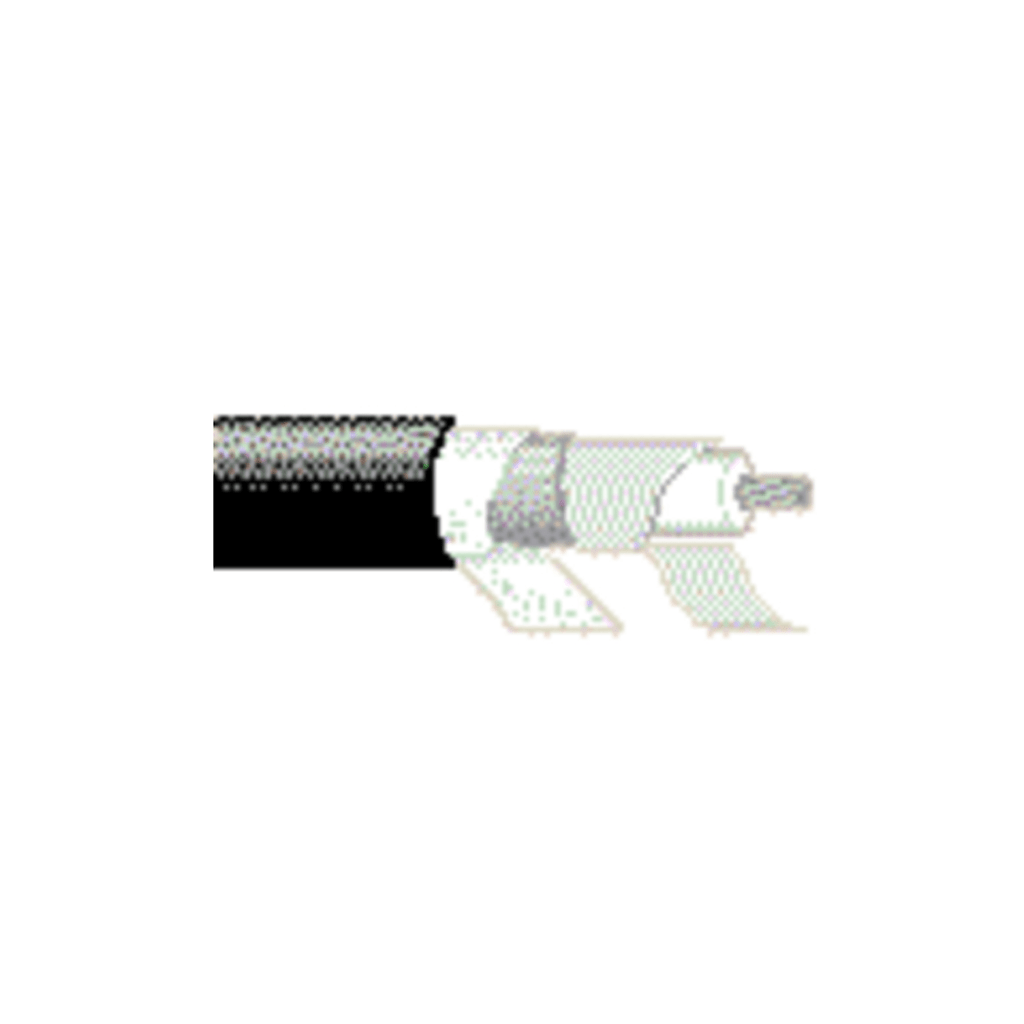

BELDEN 9778
Microphone Cable, 1 Conductor 20 AWG, TC
Product Description
20 AWG stranded (26×34) high-conductivity TC conductor, EPDM rubber insulation, conductive textile (100%) plus TC spiral shields (75% coverage), paper tape, CPE jacket
Technical Specifications
| Insulation | |||
| Material | Nominal Diameter | ||
| EPDM – Ethylene Propylene Diene Monomer | 0.117 in | ||
| Outer Shield | |||
| Type | Layer | Material | Coverage [%] |
| Spiral Serve / Screen | 1 | Textile (Conductive) | 100% |
| Spiral Serve / Screen | 2 | Tinned Copper (TC) | 75% |
| Tape | 3 | 100% | |
| Outer Jacket | |||
| Material | Nominal Diameter | Separator Material | |
| Neoprene | 0.235 in | Paper Tape | |
