Cisco TelePresence TX9000 Series

The Cisco TelePresence TX9000 Series

creates a high-quality, simple, and reliable immersive experience by
transparently integrating modern design and technology:
● The Cisco TelePresence TX9000 Series can deliver three very high quality simultaneous video streams
and a HD, full-motion content-sharing stream for superior video and content collaboration.

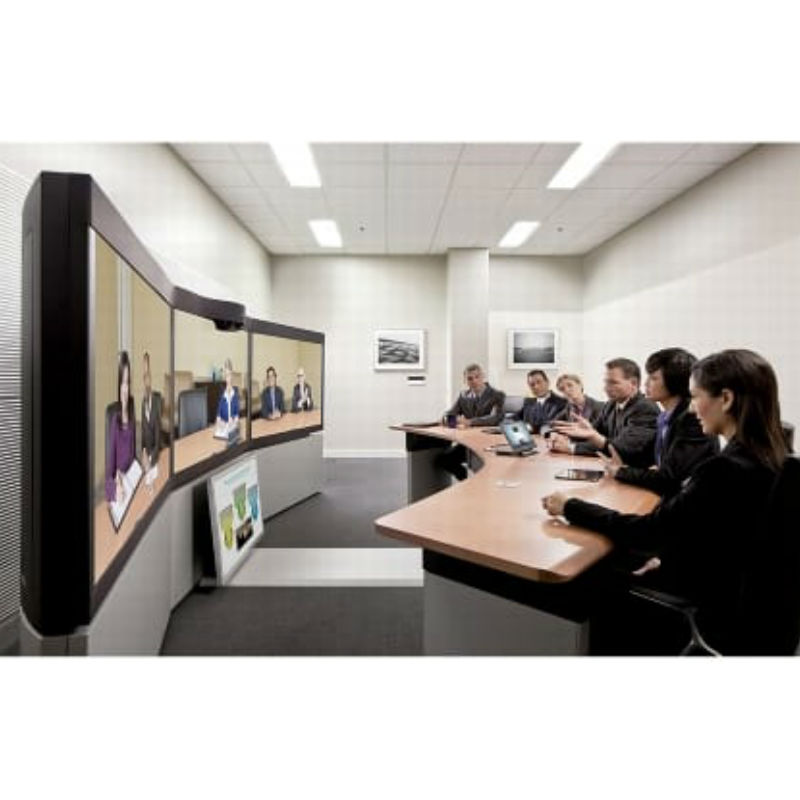

● Three 65-inch HD screens offer life-size, life-like remote meeting participation.
● State-of-the-art cameras clustered together deliver optimal eye contact and a continuous whole-room
experience with no field-of-view overlap.
● An ultra-thin (one-inch) light reflector provides high-quality facial lighting for reduced glare with flexible
deployment options (wall mount or free standing).
● The system is designed with software and component stability in mind to ensure enterprise-grade reliability.

Category:

Description

Product compatibility

● Cisco Unified Communications Manager 8.6 or later
● Cisco TelePresence Multipoint Switch 1.7 or later
● Cisco TelePresence Manager 1.7(5) or 1.8(1) and higher
● Cisco TelePresence Management Suite 13.2 or later
Software compatibility : Cisco TelePresence System Software 1.9 or later
Protocols: Cisco Discovery Protocol, Session Initiation Protocol (SIP), IP, Dynamic Host Configuration Protocol (DHCP),
Secure Shell (SSH) Protocol, 802.1p/q, Real-Time Transport Protocol (RTP) and Secure RTP (SRTP),
Telepresence Interoperability Protocol (TIP), H.264, and Binary Floor Control Protocol (BFCP)
Connectivity: Ethernet (1 LAN, RJ-45 connection: 100/1000), internal 4-port Ethernet switch, and HD video connector
Programming interfaces: Web-based user interface; you can configure IP address assignment statically or through the Cisco
TelePresence administrator web interface
Physical dimensions
(H x W x D)
TX9000: 8 x 19 x 14 feet (2.4 x 5.8 x 4.6 m) of space is required at minimum
TX9000 (with free standing light reflector): 8 x 19 x 14 feet (2.4 x 5.8 x 4.88 m)
of space is required at minimum
TX9200: 8 x 31 x 23 feet (2.44 x 9.45 x 7.01 m) of space is required at minimum
Weight: TX9000: 2041 lb (926 kg) (system weight)
TX9200: 2691 lb (1221 kg) (system weight)
Free-standing reflector option: 650 lb (295 kg)
Power : Maximum: 2.93 kW Max without table leg power, add 1.44 kW with table leg power
Total typical heat dissipation: * 2.53 kW
8644 BTU/hr

Video and Audio Specifications

Bandwidth consumption: 10.3 Mbps (1080p, 30 fps best motion handling), 9.1 Mbps (1080p, 30 fps recommended motion handling),
7.9 Mbps (1080p, 30 fps minimum motion handling)
6.1 Mbps (720p, 30 fps best motion handling), 4.3 Mbps (720p, 30 fps recommended motion handling), 3.1 Mbps
(720p, 30 fps minimum motion handling)2
Video standards: SIP, H.264, TIP, BFCP
Video frame rate : Capable of 60 fps using H.2643
Data and graphics frame rate : Content sharing up to 1080p resolution, 30 fps3
Native National Television
Standards Committee (NTSC): 720p and 1080p
Resolution : 1920 x 1080 native. Please refer to the following URL for detailed resolution support:
http://www.cisco.com/en/US/partner/docs/telepresence/interop/1_8/deployment/guide/pt2pt.html#wp1074794
Audio standards : G.711/G722 and AAC-LD (22 kHz)
Audio features : Cisco Dynamic Echo Cancellation for spatial audio

Cisco TelePresence HDcamera:
CMOS 2/3-inch sensor
C-mount lens
1080p, 60 fps
Minimum vertical illumination 200 lux
Manual focus

Firmware upgrades: Downloadable from Cisco Unified Communications Manager
Video network features : Intelligent packet loss recovery of video transmission
Network interface:
● One LAN or Ethernet (RJ-45); 100/1000 Mbps
● Internal 4-port Ethernet switch with 2 Power over Ethernet (PoE) (IEEE 802.3af) ports on codec
Interoperability :
● Cisco Telepresence System Software TC5.1 or later
● Support for a wide range of resolutions to third-party standards-based video endpoints

Conference-room operating temperature:
41 to 95ºF (5 to 35ºC)
Relative humidity: 10 to 95% (non-condensing)
