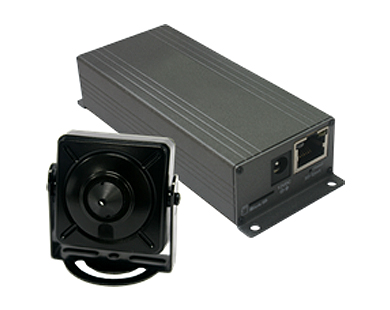

CNB NS11-0MH Specialty Camera

– HD 60frame Mini Golf IP Camera
– 1/3” Progressive scan CMOS Sensor
– Dual-Codec (H.264/MJPEG)
– Progressive scan megapixel (1.3M CMOS)
– Multi profile streaming
(5 different streams per Resolution, Frame, Rate, Codec)
– Detachable encoder box
– Digital PTZ, video crop
– Built-in standard PoE
– Two-way audio communication
– Robust design & convenient installation

描述

ModelNS11-0MH
..[Camera]
Image SensorProgressive scan 1/3 inch CMOS 1.3M pixels
Full resolution1,280 x 720 pixels (HD)
Sync. SystemInternal
LensPinhole 4..3mm, F2.0
Day & NightAUTO, DAY, NIGHT
SensitivityDark Hunter Max – 0.0005 Lux
Back Light CompensationON / OFF
White BalanceATW(2.000K ~ 10,000K)/ MANUAL / PUSH
ExposureDC / ESC
WDRON / OFF
3D-DNR0 ~ 20
Dark HunterAUTO ON (Max. x32) / OFF
Privacy MaskON / OFF (10 Programmable Zone)
Motion DetectionON / OFF (4 Programmable Zone)
Digital ZoomX1 ~ X12
MirrorH / V / Rotate
DEFOGON / OFF
OSD / LanguageBUILT IN Internally( English…)
..[Video]
Compression methodSimultaneous Dual Codec (H.264 / MJPEG)
Resolution1,280 x 720@60fps
Multi-Profile Streaming* 5 Simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile
Intelligent Bit-rate ControlHybrid Bit rate control (VBR+CBR)
PTZDigital PTZ & Video Crop
Image settingText overlay, Privacy mask, De-interlace filter
Motion detection3 regions
..[Audio]
Mono Upstream32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Mono Downstream64Kbps 16bit μ-law PCM ~ Line-out
..[Network]
Network ProtocolIPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IPSupported
Security– User ID & Password protection, IP address filtering,
– Digest Authentication, User Access Log
Streaming method– RTSP streaming with proprietary format for control informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile-S
..[External Terminals]
LAN10/100 Base-T LAN (auto MDIX)
Alarm input / outputAlarm I/O (1 Sensor input & 1 Relay output)
Factory ResetSupported
OtherMic, Line in / Line Out / 12VDC
..[Installation ]
Standard PoEIEEE802.3af Supported
..[System Integration]
Intelligent VideoMotion Detection
Alarm TriggersMotion Detection + Sensor Input + Audio Detection
Alarm EventsVideo file upload(FTP), Still Image(Email), Relay output
Video Buffer(Audio/Video)?configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)?
..[Client Software]
NVR264ch (free of charge)
Smart App.Android, iOS (free of charge)
..[Operating Environment, Power, Dimensions]
Operating Temperature-10?C ~ 50?C
Operating Humidity0 ~ 80% RH
PowerDC 12V, 0.5A
Dimensions(W x H x D)Camera : 37mm x 37mm x 25.17mm
Encoder Box : 45.6mm x 25mm x 114mm
WeightCamera : 35.5g
Encoder Box: 115g
CasingtAL, PC
ApprovalsFCC, CE, KC
Package informationIP camera, CD (User’s guide, Software…)
..[Optional Items]
Local storageMicro SD card
AdapterDC 12V, 1.5A
