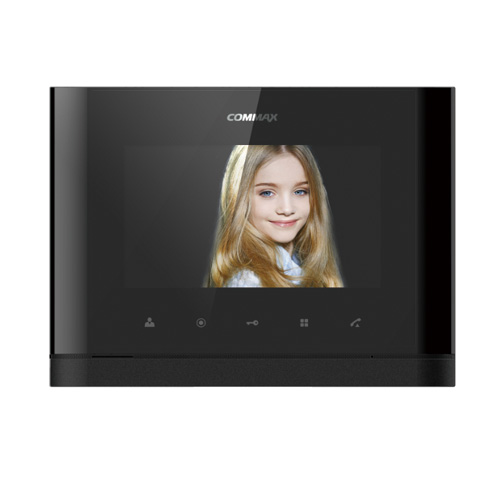

Commax CDV-77M Wall Pad/Video Phone | FINE VIEW MONITOR

Wall Pad/Video Phone | FINE VIEW MONITOR

CDV-77M is a 7 inch monitor that responsible for security.

• 7 inch TFT LCD screen
• PAL/NTSC convertible
• Video talk and door lock release enable (both individual and public entrance)
• Support 2 Monitors, 2 Cameras and 2 Interphones

• VIVID DESIGN

  Clear and waterproof surface with AF(Anti-fingerprinting) application.

• 7 INCH WIDE LCD

  Monitor visitors via 7 inch wide display LCD.

• VIVID DISPLAY AND AUDIO QUALITY

  It leads the world color monitor markets providing undistorted clear view and outstanding quality.

Power source

AC 100-240V, 50/60Hz

Mount type

Wall-mounted type

Operating temp.

0℃~40℃

Wiring

Door camera: 4 wires
Interphone: 4 wire

Distance

Door camera 1, 2 : 28m(0.5Ø)
Floor Distributor: 30m(0.65Ø)

Consumption

Max.15W/standby 3W

Dimension(mm)

244(W)×180(H)×18(D)
