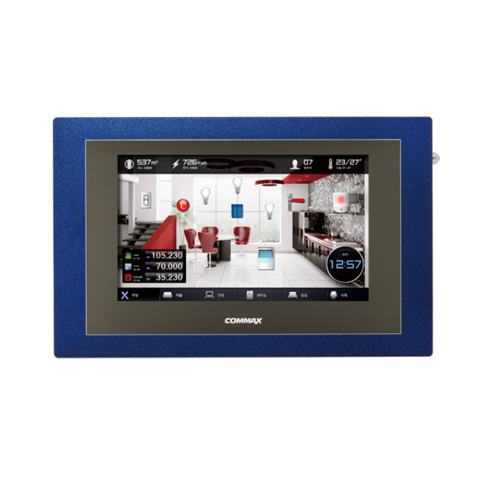

Commax CKN-1020SK Wall Pad/Video Phone | KNX FLAT

Wall Pad/Video Phone | KNX FLAT

COMMAX KNX FLAT, EMBEDDED WITH KNX TP(TWISTED PAIR), IS THE WORLD’S FIRST TOUCH PANEL, BASED ON ANDROID OS.
THE USERS CAN UTILIZE THE COMMAX PROPRIETARY SOFTWARE TO DEVELOP APPLICATIONS. HOWEVER, HAVING AN OPEN ARCHITECTURE ENABLES USERS TO WRITE THEIR OWN APPLICATIONS AS WELL. AND THE WORLD’S FIRST TEMPERED GLASS DESIGNIS APPLIED FOR A MODERN LOOK.

  • Smart control: lighting control/blind/shutter control/HVAC system/remote control/video/audio control/home appliances
  • Smart ECO: energy management/interlock with electric meter(overall lights-out)
  • Smart security: monitoring/individual room control/access control system



  • TEMPERED GLASS APPLICATION

    Tempered glass with AF(Anti-Fingerprinting)is applied to upgrade your home with a luxurious interior.

  • EDITING TOOL BASED ON ANDROID OS

    The editing tool provides a simple GUI and a drag-and -drop function for an easy configuration.

  • SMART TOUCH

    Full capacitive touch method applied with a design of convenience.

  • INTELLIGENT CONTROL SYSTEM

    An integrated control of building complexes through the Intelligent Control System.

  • EMOTIONAL MOOD LIGHT

    Apply four-sided mood light to enhance the ambient light.

  • SDK-BASED DEVELOPMENT ENVIRONMENT

    KNX Android SDK’provided by COMMAX provides the same programming environmentas Android OS.

  • SMART BLUE

    Create luxurious atmosphere with COMMAX smart blue color.

Source

DC 14V/2A

LCD size

1020SK: 10.1 inch wide color LCD
700SK: 7 inch wide color LCD

Mount type

Flush-mounted type

Operating temp.

0℃~40℃

Wiring

LAN(CAT.5e)

Data

TCP/IP, RS 485

OS

Android OS

Memory

DDR Memory 256MB

Storage

512MB High Speed Nand Flash

Touch panel

Resistance/Capacitance Touch Panel

Resolution

800×480 or 1024×600 Digital LCD

LAN

Ethernet 100M

Wireless support

IR Receive/Zigbee Optional

Sensor

Magnetic sensor interface/motion
detection/emergency/gas, etc

Image sensor

1.5M Pixel built-in C-MOS camera(Opt.)

Dimension(mm)

CKN-1020SK: 361(W)×238(H)×22(65)(D)
CKN-700SK: 257(W)×183(H)×22(65)(D)

Installation hole size

1020SK: 270(W)×164(H)
700SK: 209(W)×133(H)

Fill up box size(mm)

400(W)×236(H)×100(D)
