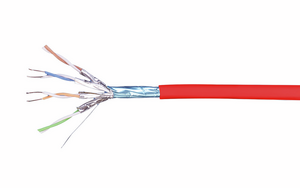

3296A Category 6A FFTP Cable low smoke zero halogen red jacket 4 pair count 1640 ft 500 m length reel
760241438 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明
| 3296A RD 4/23 R1640 — 3296A Category 6A FFTP Cable low smoke zero halogen red jacket 4 pair count 1640 ft 500 m length reel
訂購料號：760241438；產品系列：SYSTIMAX®
規格
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America |
|---|---|
| Portfolio | SYSTIMAX® |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | 3296A |
|---|---|
| ANSI/TIA Category | 6A |
| Cable Component Type | Horizontal |
| Cable Type | F/FTP (shielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Red |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
Dimensions
| Cable Length | 500 m | 1640.42 ft |
|---|---|
| Cable Length Tolerance | ±5% |
| Diameter Over Insulated Conductor | 1.168 mm | 0.046 in |
| Diameter Over Jacket, nominal | 7.01 mm | 0.276 in |
| Jacket Thickness | 0.61 mm | 0.024 in |
| Conductor Gauge, singles | 23 AWG |
Cross Section Drawing
| Click on image to enlarge. | Close Modal |
|---|
Electrical Specifications
| Coupling Attenuation | Type II |
|---|---|
| dc Resistance Unbalance, maximum | 2 % |
| dc Resistance, maximum | 7.61 ohms/100 m | 2.32 ohms/100 ft |
| Mutual Capacitance at Frequency | 4.2 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 79 % |
| Operating Frequency, maximum | 500 MHz |
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
| Segregation Class | d |
| Transfer Impedance | Grade 2 |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Shield (Tape) Material | Polyester/Aluminum shield |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg | 25 lb |
|---|
