描述
760150144
SYSTIMAX 360 GigaSPEED X10D Evolve High Density Shielded Modular Panel 24 port
760150144 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明

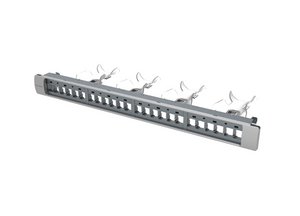

360-IPR-MFTP-E-HD6B-1U-24 — SYSTIMAX 360 GigaSPEED X10D Evolve High Density Shielded Modular Panel 24 port
訂購料號：760150144；產品系列：SYSTIMAX®
規格
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX® |
| Product Type | RJ45 patch panel |
| Product Brand | GigaSPEED X10D® | SYSTIMAX 360™ |
| Product Series | NA |
General Specifications
| ANSI/TIA Category | NA |
|---|---|
| Cable Type | Shielded |
| Color | Silver |
| Intelligence Type | iPatch® ready |
| Panel Style | Flat |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
Dimensions
| Height | 43.7 mm | 1.72 in |
|---|---|
| Width | 482.6 mm | 19 in |
| Depth, with cable management | 169.8 mm | 6.685 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | Powder-coated steel |
|---|
