描述
760251246

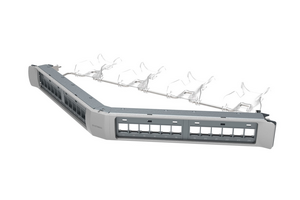

SYSTIMAX 360 Shielded Angled Modular Panel Empty 1U 24 port Silver
760251246 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明
360-IPR-SMOD-A-1U-24 — SYSTIMAX 360 Shielded Angled Modular Panel Empty 1U 24 port Silver
訂購料號：760251246；產品系列：SYSTIMAX®
規格
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | SYSTIMAX® |
| Product Type | Copper patch panel |
| Product Brand | GigaSHIELD X10D® |
General Specifications
| ANSI/TIA Category | NA |
|---|---|
| Cable Type | Shielded |
| Color | Cool gray | Satin chrome |
| Conductor Type | Solid | Stranded |
| Panel Style | Angled |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
| Wiring | T568A | T568B |
Dimensions
| Height | 44.7 mm | 1.76 in |
|---|---|
| Width | 482.6 mm | 19 in |
| Depth, with cable management | 274.7 mm | 10.815 in |
| Compatible Conductor Gauge, solid | 22 AWG | 26 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG | 26 AWG |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic | PC+ABS | Powder-coated steel |
|---|
