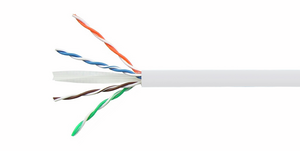

CommScope CS30CM WHT C6 424 UUTP RIB 305M Copper Cable category 6 4 pair UTP CM rated 24 AWG 305 m reel in box white

查詢價錢

Copper Cable category 6 4 pair UTP CM rated 24 AWG 305 m reel in box white。規格以原廠資料為準。

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

1427071-2

Copper Cable category 6 4 pair UTP CM rated 24 AWG 305 m reel in box white

1427071-2 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。

CS30CM WHT C6 424 UUTP RIB 305M — Copper Cable category 6 4 pair UTP CM rated 24 AWG 305 m reel in box white

訂購料號：1427071-2；產品系列：NETCONNECT®

Product Number	CS30CM
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

Cable Length	304.8 m \| 1000 ft
Diameter Over Insulated Conductor	0.909 mm \| 0.0358 in
Diameter Over Jacket, nominal	5.588 mm \| 0.22 in
Conductor Gauge, singles	24 AWG

Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m \| 2.859 ohms/100 ft
Delay Skew, maximum	45 ns
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	68 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Propagation Delay, maximum	536 ns/100m @250MHz
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Segregation Class	b

Minimum Bend Radius Note	4 times the outer cable diameter
