描述
1427070-6

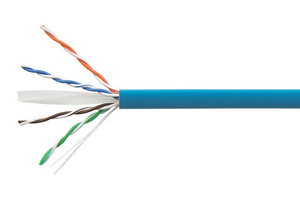

Category 6 UUTP Cable 24AWG low smoke zero halogen blue jacket 4 pair count 305 m length Reel in box
1427070-6 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明
CS30Z1 BLU C6 424 UUTP RIB 305M — Category 6 UUTP Cable 24AWG low smoke zero halogen blue jacket 4 pair count 305 m length Reel in box
訂購料號：1427070-6；產品系列：NETCONNECT®
規格
Product classification
| Regional Availability | Asia | Latin America | Australia/New Zealand | China |
|---|---|
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | CS30Z1 |
|---|---|
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Blue |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568.2-D |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
|---|---|
| Diameter Over Insulated Conductor | 0.978 mm | 0.0385 in |
| Diameter Over Jacket, nominal | 5.588 mm | 0.22 in |
| Conductor Gauge, singles | 24 AWG |
Cross Section Drawing
| Click on image to enlarge. | Close Modal |
|---|
Electrical Specifications
| Characteristic Impedance | 100 ohm |
|---|---|
| Characteristic Impedance Tolerance | ±15 ohm |
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Separator Material | Polyolefin |
