88403350810

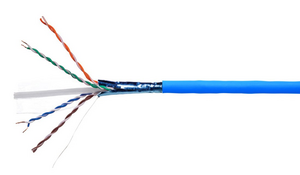

CS34CM Category 6 FUTP Cable non-plenum blue jacket 4 pair count 1000 ft 305 m length reel
88403350810 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明
CS34CM BLU C6 423 FUTP RL 305M — CS34CM Category 6 FUTP Cable non-plenum blue jacket 4 pair count 1000 ft 305 m length reel
訂購料號：88403350810；產品系列：NETCONNECT®
規格
Product classification
| Regional Availability | Asia |
|---|---|
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | CS34CM |
|---|---|
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | F/UTP (shielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Drain Wire Type | Solid |
| Jacket Color | Blue |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class E |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
|---|---|
| Diameter Over Jacket, nominal | 7.188 mm | 0.283 in |
| Conductor Gauge, singles | 23 AWG |
| Drain Wire Gauge | 26 AWG |
Cross Section Drawing
| Click on image to enlarge. | Close Modal |
|---|
Electrical Specifications
| Dielectric Strength, minimum | 1500 Vac | 2500 Vdc |
|---|---|
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | Polyolefin |
| Jacket Material | PVC |
| Shield (Tape) Material | Aluminum/Polyester |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg | 25 lb |
|---|
