描述
460158784

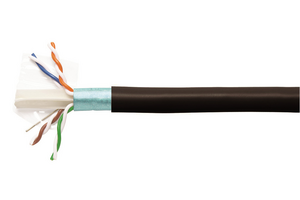

CS41O Category 6A FUTP twisted pair cable outdoor direct burial gel-filled black jacket 4 pair count 1000 ft 305 m length reel ANATEL CERTIFIED
460158784 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
產品說明
— CS41O Category 6A FUTP twisted pair cable outdoor direct burial gel-filled black jacket 4 pair count 1000 ft 305 m length reel ANATEL CERTIFIED
訂購料號：460158784；產品系列：NETCONNECT®
規格
Product classification
| Regional Availability | Asia | Australia/New Zealand | Latin America |
|---|---|
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair cable |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Component Type | Horizontal |
| Cable Type | F/UTP (shielded) |
| Conductors, quantity | 8 |
| Construction Type | Non-armored |
| Jacket Color | Black |
| Note | Delay has been derated by 6% due to the water proofing agents |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D | IEC 61156-5 | ISO/IEC 11801 Class EA |
Dimensions
| Cable Length | 304.8 m | 1000 ft |
|---|---|
| Diameter Over Jacket, nominal | 7.899 mm | 0.311 in |
| Diameter Over Jacket Tolerance | ±0.3 mm |
| Conductor Gauge, singles | 23 AWG |
| Drain Wire Gauge | 26 AWG |
Cross Section Drawing
| Click on image to enlarge. | Close Modal |
|---|
Electrical Specifications
| dc Resistance Unbalance, maximum | 2 % |
|---|---|
| dc Resistance, maximum | 9.38 ohms/100 m | 2.859 ohms/100 ft |
| Delay Skew, maximum | 45 ns |
| Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
| Nominal Velocity of Propagation (NVP) | 66 % |
| Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Drain Wire Material | Tinned copper |
| Insulation Material | Polyethylene |
| Jacket Material | PE | UV resistant |
| Shield (Tape) Material | Aluminum, foil |
Mechanical Specifications
| Minimum Bend Radius Note | 8 times the outer cable diameter |
|---|---|
| Pulling Tension, maximum | 11.34 kg | 25 lb |
