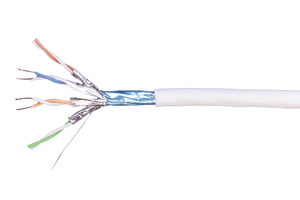

CommScope CS44Z3A WHT C6A 423 FFTP RL 305M CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1000 ft 305 m length reel

描述

88403690810

CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1000 ft 305 m length reel

88403690810 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。

產品說明

CS44Z3A WHT C6A 423 FFTP RL 305M — CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1000 ft 305 m length reel

訂購料號：88403690810；產品系列：NETCONNECT®

規格

Product classification

Regional Availability	Asia | Australia/New Zealand
Portfolio	NETCONNECT®
Product Type	Twisted pair cable

General Specifications

Product Number	CS44Z3
ANSI/TIA Category	6A
Cable Component Type	Horizontal
Cable Type	F/FTP (shielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	White
Pairs, quantity	4
Transmission Standards	ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

Dimensions

Cable Length	304.8 m | 1000 ft
Cable Length Tolerance	±5%
Diameter Over Insulated Conductor	1.25 mm | 0.0492 in
Diameter Over Jacket, nominal	7.01 mm | 0.276 in
Conductor Gauge, singles	23 AWG

Cross Section Drawing

Click on image to enlarge.	Close Modal

Electrical Specifications

dc Resistance, maximum	9.38 ohms/100 m | 2.859 ohms/100 ft
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Operating Frequency, maximum	500 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Electrical Performance

Click on image to enlarge.	Close Modal
Click on image to enlarge.	Close Modal

Material Specifications

Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	Low Smoke Zero Halogen (LSZH)
Shield (Tape) Material	Polyester/Aluminum shield
