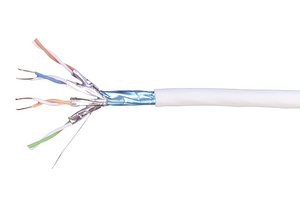

CommScope CS44Z3A WHT C6A 423 FFTP RL 500M CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1640 ft 500 m length reel

CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1640 ft 500 m length reel。規格以原廠資料為準。

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

描述

88403695816

CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1640 ft 500 m length reel

88403695816 屬CommScope線材、配線及機櫃產品。傑成系統有限公司（香港防盜）為CommScope產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。

CS44Z3A WHT C6A 423 FFTP RL 500M — CS44Z3A Category 6A FFTP Cable low smoke zero halogen white jacket 4 pair count 1640 ft 500 m length reel

訂購料號：88403695816；產品系列：NETCONNECT®

Cable Length	499.872 m \| 1640 ft
Cable Length Tolerance	±5%
Diameter Over Insulated Conductor	1.25 mm \| 0.0492 in
Diameter Over Jacket, nominal	7.01 mm \| 0.276 in
Conductor Gauge, singles	23 AWG

Click on image to enlarge.	Close Modal

dc Resistance, maximum	9.38 ohms/100 m \| 2.859 ohms/100 ft
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Operating Frequency, maximum	500 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
