描述

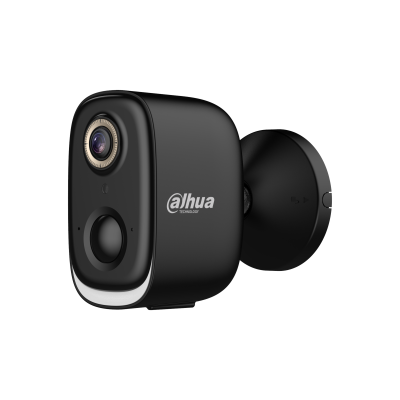

APOLLO BF5H(Black)
Wi-Fi Battery Security Camera
APOLLO BF5H(Black) 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 15 m (49.21 ft) (IR) Up to 10 m (32.81 ft) (Warm light) |
| Illuminator Number | 2 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0° to 360° Tilt: –60° to 0° Rotation: 0° to 360° |
| PIR Sensor Distance | 12 m (the height of device is 2.5 m, placed horizontally); 8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal) |
| Lens Type | Fixed-focal |
| Focal Length | 2.1 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 122.5°; V: 66°; D: 144.5° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2880 × 1620@(1–15 fps) Sub stream: 640 × 360@(1–15 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
Network
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 [email protected] (CE), EIRP≤23 dBm@5150-5250 MHz (CE), EIRP≤20 dBm@5250-5350 MHz (CE), EIRP≤27 dBm@5470-5725 MHz (CE), EIRP≤14 dBm@5725-5875 MHz (CE) |
|---|---|
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 512 GB) |
| Management Software | DMSS |
| Mobile Client | Android;iOS |
General
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
|---|---|
| Power Supply | USB (5 VDC±5%, 2 A) |
| Power Consumption | Ultra power saving mode: 0.0082 W Power saving mode: 0.0082W AOV mode: 0.1566 W Performance mode: 1.0315 W |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Camera Button | Reset Button; Power Button |
| Casing Material | Plastic |
| Product Dimensions | 90.4 mm × 69.6 mm× 54.0 mm (3.56" × 2.74"× 2.52") |
| Net Weight | 0.3 kg (0.66 lb) |
Battery
| Battery Capacity | 5600 mAh / 20.44 Wh |
|---|
