描述

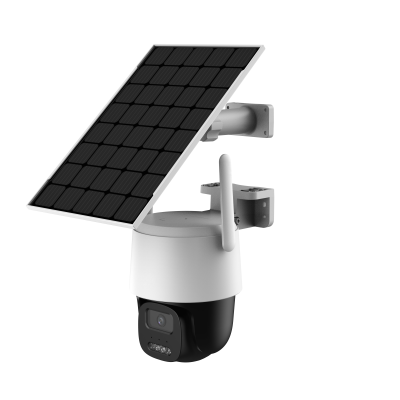

APOLLO BP5E-4G
4G Solar Security System
APOLLO BP5E-4G 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/3" CMOS |
|---|---|
| Max. Resolution | 2880(H)x 1620(V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 350° Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 78.4°; V: 42.4°; D: 92.4° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2880 × 1620@(1–15 fps) |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Carrier Network System | (-EAU/EUR)FDD-LTE: B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 4G: Power class3: 23 dBm±2.7 dB Applicable regions: Europe (-LA)FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66 TDD-LTE: B38/B40/B41 4G: Power class3: 23 dBm±2.7 dB Applicable regions: Latin America |
| Storage | Micro SD card (support max 512 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
General
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
|---|---|
| Power Supply | USB (5 VDC±5%, 2 A) |
| Power Consumption | Performance Mode: 1.22 W AOV Mode: 0.1W Ultra Power Saving Mode: 0.02W |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Camera Button | Reset Button;Power Button |
| Casing Material | Plastic |
| Product Dimensions | 162.4 mm × 141.2 mm × 248.8 mm (6.39" × 5.56" × 9.8") (L × W × H) |
| Net Weight | 0.73kg (1.61lb) |
Battery
| Battery Capacity | 36 Wh |
|---|---|
| Operating Temperature | Charge: 0 °C to +50 °C (+32 °F to +122 °F) Discharge: –20 °C to +60 °C (–4 °F to +140 °F) |
Solar Module
| Max. Power | 8W |
|---|---|
| Cell Type | Monocrystalline silicon |
