描述

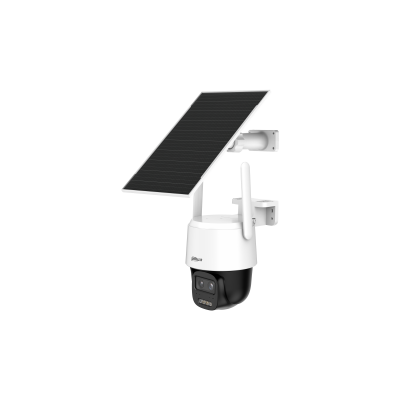

APOLLO BP6Z-4G

4G Solar Security System

APOLLO BP6Z-4G 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

Image Sensor	1/3" CMOS
Max. Resolution	2304 (H) × 1296 (V)
Illumination Distance	Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm Light)
Illuminator Number	2 (Multi-core (IR + warm) light); 1 pair (Red and blue alarm light)
Angle Adjustment	Pan: 0° to 350° Tilt: 0° to 90°
Lens Type	Fixed-focal
Focal Length	2.8 mm; 6 mm
Max. Aperture	F1.6
Field of View	H: 49°–96°; V: 27°–54°; D: 58°–112°

Human Detection	Yes
Vehicle Detection	Yes

Video Compression	H.265
Video Frame Rate	Main stream: 2304 × 1296@(1–15 fps) *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate	H.265: 12 kbps–4096 kbps
WDR	Yes
Digital Zoom	Yes
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM; AAC-LC

Network Port	RJ-45 (10/100 Base-T)
Carrier Network System	4G(-EAU/-EUR) FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66 TDD-LTE: B38/B40/B41 Power class3: 23 dBm±2.7 Db Applicable regions: Latin America; 4G(-LA) FDD-LTE: B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 Power class3: 23 dBm±2.7 dB Applicable regions: Europe
Storage	Micro SD card (supports max 512 GB)
Management Software	DMSS
Mobile Client	Android;iOS

Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply	USB (5 VDC±5%, 2 A)
Power Consumption	Performance Mode: 1520 mW (light off)/1940 mW ((IR light on)/4240mW(light on+PT+Warning light on+Speak on) AOV Mode (0.5 fps): 125 mW (light off)/168 mW ((IR light on) Ultra Power Saving Mode: 59 mW
Operating Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity	≤95% (RH), non-condensing
Protection	IP66
Anti-corrosion Level	Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Camera Button	Reset Button; Power Button
Casing Material	Plastic
Product Dimensions	172.7 mm × 141.2 mm × 274 mm (6.8" × 5.56" × 10.79") (L × W × H)
Net Weight	0.74 kg (1.63 lb)

Battery Capacity	10000 mAh / 36 Wh
Operating Temperature	Charge (-EUR): –20 °C to +50 °C (–4 °F to +122 °F) Charge: 0 °C to +50 °C (+32 °F to +122 °F) Discharge: –20 °C to +60 °C (–4 °F to +140 °F)
