描述

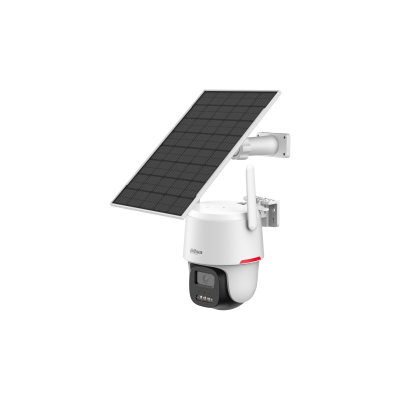

Apollo P15 2K
4G Solar Security System
Apollo P15 2K 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.9" CMOS |
|---|---|
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance | Up to 20 m (65.62 ft) (Warm light) |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment | Pan: 0° to 350° Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 81°; V: 44°; D: 95° |
Intelligence
| Human Detection | Yes |
|---|---|
| Vehicle Detection | Yes |
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2304 × 1296@(1–15 fps) |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
Network
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Carrier Network System | FDD-LTE: B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 4G: Power class3: 23 dBm±2.7 dB |
| Storage | Micro SD card (support max 512 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
General
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
|---|---|
| Power Supply | USB (5 VDC±5%, 2 A) |
| Power Consumption | Performance Mode: 1.22 W AOV Mode: 0.08 W Ultra Power Saving Mode: 0.008 W |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Camera Button | Reset Button;Power Button |
| Casing Material | Plastic |
| Product Dimensions | 179.3 mm × 144.6 mm × 268.8 mm (7.06" × 5.69" × 10.58") (L × W × H) |
| Net Weight | 0.76 kg (1.68 lb) |
Battery
| Battery Capacity | 10000 mAh / 36 Wh |
|---|---|
| Operating Temperature | Charge: 0 °C to +50 °C (+32 °F to +122 °F) Discharge: –20 °C to +60 °C (–4 °F to +140 °F) |
Solar Module
| Max. Power | 8W |
|---|---|
| Cell Type | Monocrystalline silicon |
