描述

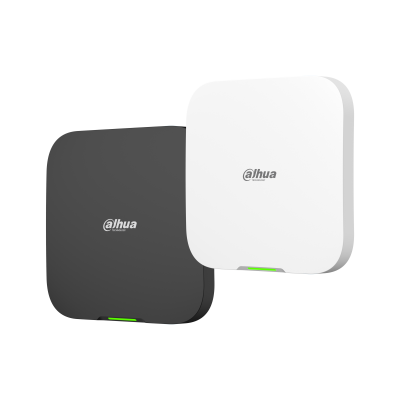

ARC3800H-W2
Dahua Wireless Alarm Hub 2
ARC3800H-W2 屬大華防盜警報產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考防盜系統。規格以原廠資料為準。
規格
Port
| Wireless Zone | 150 wireless peripherals (64 keyfobs, 6 sirens (including 4 intercom sirens), 8 keypads, 4 repeaters, 64 PIR-Cam (including Indoor PIR Cameras, External PIR Cameras, and Triple-tech Detectors), 16 Multi I/O Transmitters), 64 wired alarm inputs expanded by Transmitters, and 8 IPCs |
|---|---|
| Area | 32 areas (rooms) |
| Network Mode | Ethernet and Wi-Fi |
| Network Port | 1 RJ-45, 10 Mbps/100 Mbps Ethernet port. |
| Storage Battery | One built-in 4,750 mah rechargeable lithium battery. |
Video & Audio
| Video Input | 8-ch IPC, which only supports the upload of alarm videos. |
|---|---|
| Audio Output | 1 channel |
| Volume Control | Yes |
| Voice Broadcast | Local speaker |
Function
| Indicator Light | The indicator indicates the status of alarms, arming and disarming, the network connection and device failure. |
|---|---|
| Button | Includes a reset button, voltage button and AP switch button. |
| Video Linkage | Yes |
| Offline Cache | Stores up to 50 alarm messages. |
| Arm and Disarm | App, keyboard, remote control, card, scheduled arming and disarming. |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| User Management | 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users |
| Logs | Up to 5, 000 entries |
| Transmission Protocol | SIA, SoftGuard |
Wireless
| Carrier Frequency | 433.1–434.6 MHz |
|---|---|
| Transmitter Power (EIRP) | Limit 10 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 1,400 m (4593.18 ft) in an open space. |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
General
| Language | Support 14 languages: Arabic, Czech, Danish, Dutch, English, French, German, Italian, Portuguese (Europe), Russian, Spanish (Latin America), Spanish (Europe), Turkish, Slovak.It is set as English by default. |
|---|---|
| Power Supply | 100–240 VAC, 50/60 Hz |
| Standby Time | The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud. |
| Power Consumption | 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby) |
| Operating Temperature | When battery is not charging: –10 °C to +55 °C (+14 °F to +131 °F) When battery is charging : 0 °C to +45 °C (+32°F to +113 °F) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H) |
| Net Weight | 510 g (1.12 lb) |
| Gross Weight | 860 g (1.90 lb) |
| Installation | Supports wall mount and desktop mount installation. |
| Casing Material | PC + ABS |
| Certifications | CE |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions | 254 mm × 211 mm × 61 mm (10.00” × 8.31” × 2.40”) (L × W × H), standalone in the inner box 524 mm × 508 mm × 442 mm (20.63” × 20.00” × 17.40“) (L × W × H), protective case |
Wi-Fi
| Wi-Fi Standard | IEEE 802.11b/g/n |
|---|---|
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 [email protected] MHz |
