描述

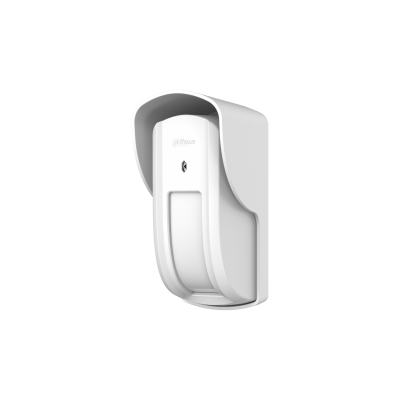

ARD2631E-W2
Wireless External Curtain PIR
ARD2631E-W2 屬大華防盜警報產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考防盜系統。規格以原廠資料為準。
規格
Function
| Indicator Light | 1 × Three-color alarm light (green, yellow, red) |
|---|---|
| Button | 1 × power button; 1 × Installation height adjustment switch |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Tamper alarm |
| Moving detection | Yes |
Technical
| Detection Mode | PIR + Microwave |
|---|---|
| Sensitivity | 3 levels adjustable |
| Detection Range | Range:5-12 m; horizontal: 8°; vertical: 58°; The angle is 58°at 2.4 m |
| Detection Speed | 0.3 m/s–2m/s |
| Microwave Frequency | 24G |
| White Light Resistance Level | 10000 lux |
| Anti-masking | Yes. The material and distance of an obstruction can affect the detection results |
| Two-way Digital Temperature Compensation | Yes |
| Scenario | Outdoor,indoor |
| Operating Current | 48 uA |
| Alarm Current | 58 mA (Avg); 880 mA (Max) |
Wireless
| Carrier Frequency | Airfly:433.05 MHz-434.79 MHz; RF-HD:433.05 MHz–434.79 MHz (Device Upgrade) |
|---|---|
| Transmitter Power (EIRP) | limit 10 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 1,200 m ( 3937.01ft)in an open space |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
General
| Battery Model | CR123A×2 |
|---|---|
| Battery Life | 4.2 years (triggers 1 alarm a day) |
| Operating Temperature | –25 °C to +60 °C (–13 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | With sunshade：154.6 mm × 72.3 mm × 81.1 mm (6.09" × 2.85" × 3.19"); Without sunshade：138 mm × 59 mm × 65.57 mm (5.43" × 2.32" × 2.58") |
| Installation Height | Low mounting: 0.8 to 1.3 m; High mounting: 2 to 2.4 m (the mounting height affects the detection range) |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.76 kg (1.68 lb) |
| Installation | Wall mount |
| Casing Material | PC + GF |
| Protection | IP65 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Packaging Dimensions | 181 mm × 142 mm × 111 mm (7.13" × 5.59" × 4.37") |
