描述

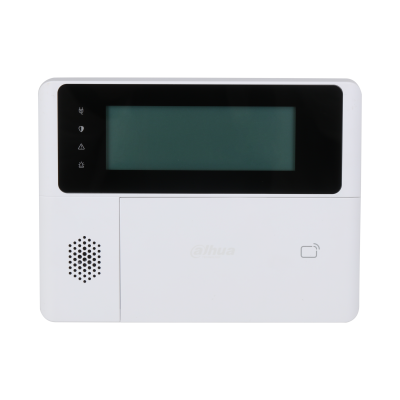

ARK32C-RW2
Wired LCD Keypad(Support intercom and wireless peripherals expansion)
ARK32C-RW2 屬大華防盜警報產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考防盜系統。規格以原廠資料為準。
規格
Port
| Wired Input | 2 local channels. Connected to a maximum of 500 m. Cable: Twisted pair (oxygen-free copper wire, 57/0.145±0.007 mm, 1000 m, ≤19.5Ω). |
|---|---|
| Wired Output | 1 local channel. Connected to a maximum of 500 m. Cable: Twisted pair (oxygen-free copper wire, 57/0.145±0.007 mm, 1000 m, ≤19.5Ω). |
| Wireless Peripheral | 32 peripherals |
| RS-485 | 1×RS-485 port.Connected to a maximum of 1000 m，and intercom devices must be limited within 200 m; Cable:Twisted pair (oxygen-free copper wire, 57/0.145±0.007 mm, 1000 m, ≤19.5Ω). |
| Microphone | 1×MIC (5 m pick-up distance) |
| Screen | 1 × LCD screen. Supports displaying 96 characters in 4 lines. |
Video & Audio
| Volume Control | Yes |
|---|---|
| Two-way Audio | 2-way voice talk. |
| Voice Broadcast | Yes |
Function
| Indicator Light | 4 indicators (External power supply, arming/disarming, fault, and alarm) |
|---|---|
| Button | 20 buttons (10 digital buttons and 10 function buttons) |
| Arm and Disarm | Password; IC/DESFire card |
| Remote Update | Cloud update, WEB |
| Tamper | Yes |
| Measuring Range (Temperature) | –10 °C to +55 °C (+14 °F to +131 °F) |
Technical
| Scenario | Indoor |
|---|---|
| Operating Current | 1 A (Max), 125 mA (Standby) |
| Sound Pressure | Maximum: 75 dB(A) at 1 meter |
Wireless
| Carrier Frequency | 433.1 – 434.6 MHz |
|---|---|
| Transmitter Power (EIRP) | Limit 10 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 1,400 m (4593.18 ft) in an open space. |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
General
| Language | English, Italian, French (Europe), German, Portuguese (Europe), Dutch, Spanish (Europe), Spanish (Latin America), Turkish, Russian, Polish, Czech, Slovak, Danish, Hungarian, Croatian, Ukrainian, Swedish, Serbian, Greek, Bulgarian. |
|---|---|
| Power Supply | 9-15 VDC |
| Power Consumption | 12 W (Max), 1.5 W (Standby) |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 170.0 mm × 129.0 mm × 31.2 mm (6.69" × 5.08" × 1.23") |
| Net Weight | 372 g (0.82 lb) |
| Gross Weight | 566 g (1.25 lb) |
| Installation | Wall mount |
| Casing Material | PC + ABS |
| Appearance Color | White |
| Protection | IP30 |
| Certifications | CE |
| Accessory | Included: 2 IC cards |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Packaging Dimensions | 214.0 mm × 162.0 mm × 57.0 mm (8.43" × 6.38" × 2.24") |
