描述
ASGB6XXS-X

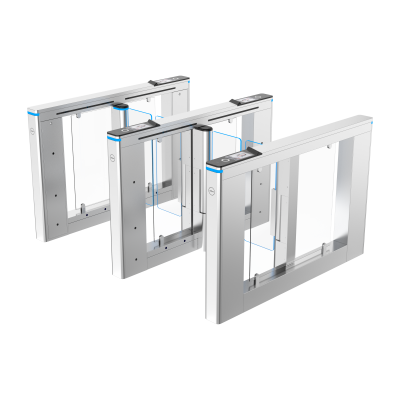

Dahua Integrated Swing Barrier (Middle,Indoor,Entry and exit verification) -DHI-ASGB624S-D
ASGB6XXS-X 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor | Embedded Processor |
|---|---|
| SDK | Yes |
Basic
| Product Type | Swing Barrier |
|---|---|
| Motor Type | DC brushless servomotor |
| Status Indicator Light | Solid Blue – Working Status;Red Strobe – Abnormal Status;Green Strobe – Authorized Status;Solid Green – Always Open |
| Voice Prompt | Yes |
| Main Materials of Cabinet | SUS304 |
| Surface Treatment | Stainless Steel Ink Etching |
| Number of Turnstile Card Reader | 2 |
| Display Screen | 7" display |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 600 (H) × 1024 (V) |
| Camera | 1/2.8" 2-MP CMOS dual-lens camera that offers high definition imagery |
| Light Compensation | Auto IR |
Function
| Auto Registration | Yes |
|---|---|
| Verification Method | Card;Remote;QR Code;Face Recognition |
| Advertisement Playing | Plays advertisements in video and image format |
| Capture Function | Yes |
RFID
| Card Type | IC card |
|---|---|
| Modulation Type | ASK |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42 dBuA/m @10 m |
Performance
| MCBF | ≥ 12 million times |
|---|---|
| Card Reading Distance | 0 cm–5 cm |
| Passage Width | Acrylic: 600 mm (23.62") |
| Max Custom Passage Width | Acrylic: 1,500 mm (59.06"); Tempered Glass: 900 mm (35.43") |
| Passing Speed | 20–60 persons/min. It is affected by the interval between the passage of persons and the type of passing mode. |
| Unlock/Lock Speed | ≥ 0.5 s |
| Pairs of IR Detectors | 16 pairs |
| Top Cover Thickness | 1.5 mm (0.06") |
| Supported Codes | QR Code |
| Code Type | Printed QR code, digital QR code |
| Frame Thickness | Frame thickness: 1.5 mm (0.06")，Detachable side panel thickness: 1.2 mm (0.05") |
| Barrier Material | Included: Acrylic;Optional: Tempered glass |
| Face Recognition Height Range | 1.2 m–2.4 m (3.94 ft–7.87 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.90% |
| Face Recognition Time | 0.2 s |
| Max. Height of Customized Barrier | Tempered Glass: 1800 mm (70.87") |
| Number of Access Controllers | 2 |
| Remote Control | Yes (optional) |
| Standard Height of Barrier | Acrylic: 885 mm (34.84") Tempered glass: 1,200 mm (47.24") |
Capacity
| User Capacity | 100,000 |
|---|---|
| Card Capacity | 500,000 |
| Record Capacity | 1,200,000 |
| Face Image Capacity | 100,000 |
Port
| Network Port | 2-channel self-adaptive 10/100 Mbps Ethernet ports |
|---|---|
| Fire Port | 1 |
| Entrance Unlock Port | 1 |
| Exit Unlock Port | 1 |
Alarm
| Stay overtime alarm | Yes |
|---|---|
| Tailing Alarm | Yes |
| Intrusion | Yes |
| Reverse Intrusion Alarm | Yes |
| Jumped Barrier Alarm | Yes |
| Abnormal Unlock Alarm | Yes |
General
| Power Supply | 100–240 VAC, 3.4 A |
|---|---|
| Series | ASGB6S series |
| Power Consumption | Single turnstile: ≤10 W (standby), ≤150 W (working) Dual turnstiles: ≤20 W (standby), ≤300 W (working) |
| Product Dimensions | 1,500 mm × 120 mm × 1,000 mm (59.06" × 4.72" × 39.37") (L × W × H) |
| Module Protruding Size | 160 mm (6.30") |
| Packaging Dimensions | 1,590 mm × 346 mm × 1,083 mm (62.60" × 13.62" × 42.64") (L × W × H) |
| Gross Weight | 115 kg (253.54 lb) |
| Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Environment | Indoor |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 40%–65% (RH) |
| Certifications | CE certified. |
