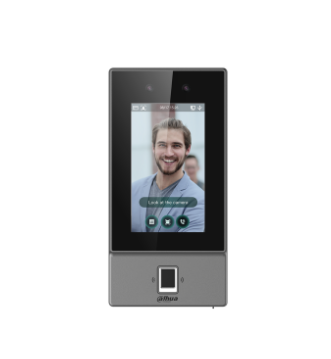

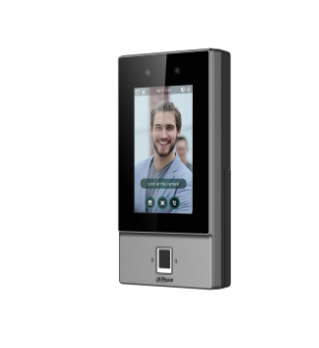

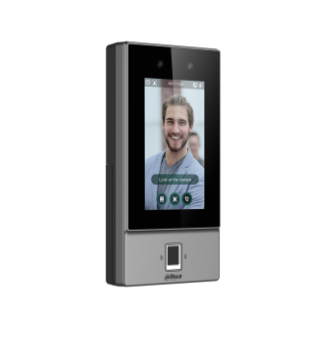

Dahua ASI6214S-PW Face Recognition Access Controller

描述

Face Recognition Access Controller

> 4.3 inch glass touch screen with a resolution of 272 × 480.

> 2-MP wide-angle dual-lens camera with IR illumination and DWDR.

> Multiple unlock methods including fingerprint, face, IC card and password.

> Supports 6,000 users, 6,000 faces, 6,000 passwords, 6,000 fingerprints, 10,000 cards, 50 administrators, and 300,000 records.

> Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft); face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.

> Supports improved security and to protect against the device being forcefully opened, security module expansion is supported.

> Features face mask detection and safety helmet detection.

> Supports visitor QR code and doorbell function.

> Supports making video calls and using the app to receive alarm notifi cations, remotely unlock doors and to perform other tasks.

> TCP/IP and Wi-Fi connection.

> PoE power supply.

> IP65 rated.



Specifications

System
Main ProcessorEmbedded Processor
Button TypeTouch button
Network ProtocolUDP; TCP; IPv4; RTSP; SIP; P2P; RTP
OSDP ProtocolYes
InteroperabilityCGI; ONVIF
SDK and APIYes
Basic
Product TypeStandalone
Display Screen4.3″ LCD
Screen TypeCapacitive Touchscreen
Screen Resolution272 (H) × 480 (V)
Camera2-MP CMOS HD dual-lens camera
WDRDWDR
Light CompensationAuto IR
Voice PromptYes
BuzzerYes
Casing MaterialPC+GF
Function
Unlock ModeCard, remote, password, QR code, Fingerprint, face and combination unlock
Card TypeIC cards
Period List128 periods
Holiday Period128 periods
Network UpdateYes
First User UnlockYes
Remote VerificationYes
Restricted List/Trusted ListYes
Wi-FiYes
Wireless StandardIEEE802.11b/802.11g/802.11n
Wireless Frequency Range2.4 GHz
Peripheral Card Reader1 × RS-485 card reader
1 × Wiegand card reader
Multi-user AuthenticationYes
Real-time MonitoringYes
Multi-factor AuthenticationYes
Capture FunctionYes
Web ConfigurationYes
Auto RegistrationYes
Performance
Card Reading Distance0 cm–3 cm (0″–1.18″)
Face Recognition Height Range1.1 m–2.0 m (3.61 ft–6.56 ft)
Face Recognition Distance0.3 m–1.5 m (0.98 ft–4.92 ft)
Face Recognition Accuracy99.9%
Face Recognition Time0.2 s
Fingerprint Verification Mode1:N
User
User (Card) TypeNormal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2
Capacity
User Capacity6,000
Face Image Capacity6,000
Fingerprint Capacity6,000
Card Capacity10,000
Password Capacity6,000
Record Capacity300,000
Port
RS-4851
Wiegand1
USB1
Network Port1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Alarm Input1
Alarm Output1
Alarm LinkageYes
Exit Button1
Door Status Detection1
Lock Control1
Alarm
Anti-pass BackYes
Tamper AlarmYes
Duress AlarmYes
Door Sensor TimeoutYes
IntrusionYes
Duress FingerprintYes
Illegal Card Exceeding ThresholdYes
General
Power AdapterIncluded
Power SupplyStanard PoE
12 VDC, 1.5 A
ProtectionIP65
Power Consumption≤12 W
Product Dimensions180.1 mm × 90.1 mm × 27.0 mm (7.09″ × 3.55″ × 1.06″) (L × W × H)
Packaging Dimensions268 mm × 136 mm × 78 mm (10.55″ × 5.35″ × 3.07″) (L × W × H, in an inner carton)
590 mm × 432 mm × 302 mm (23.23″ × 17.01″ × 11.89″) (L × W × H, protection box)
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity0%–90% (RH), non-condensing
Operating Altitude0 m–1,300 m (0 ft–4265.09 ft)
Operating EnvironmentOutdoor; Indoor
Gross Weight0.70 kg (1.54 lb)
AccessoryWall mount bracket (included)
InstallationTurnstile mount; 86 case mount; Wall mount; surface mount
