ASI7213G-PW

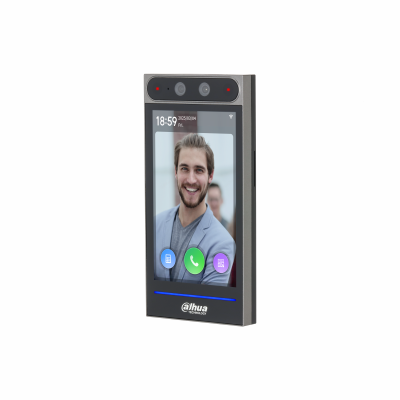

Dahua 7-inch POE Face Recognition Access Controller
ASI7213G-PW 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor | Embedded Processor |
|---|---|
| Button Type | Touch button |
| Network Protocol | IPv4;RTSP;UDP;P2P;IPv6;RTP;TCP;SIP |
| OSDP Protocol | Yes |
| Interoperability | ONVIF;CGI |
| SDK and API | Yes |
Basic
| Product Type | Standalone |
|---|---|
| Display Screen | 7-inch display screen |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 600 (H)×1024 (V) |
| Camera | 4MP+2MP CMOS HD dual camera |
| WDR | 120 dB |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Speaker | Yes |
| Casing Material | Glass; PC; PC+GF |
Function
| Verification Method | Card;Password;QR Code;Face Recognition;Bluetooth |
|---|---|
| Sub-Module Expansion | Yes |
| Sub-Module Verification Method | Card swiping;Fingerprint;QR Code |
| Door Open Notification Mode | Yes |
| Frequency Range | 2400-2483.5 MHz |
| Max. Transmission Power | ≤20 [email protected] MHz; |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | BLE5.4 |
| Advertisement Playing | Plays advertisements in video and image format |
| Peripheral Card Reader | Supports 1 × RS-485 card reader and 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
RFID
| Card Type | IC card;Desfire card (EV3,Compatible with Dahua card by default);Felica card |
|---|---|
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42 dBuA/m @10 m |
Network
| Max. Transmission Power | ≤20 [email protected] MHz; ≤23 dBm@5150-5250 MHz; ≤20 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz |
|---|---|
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/g/n/a/ac/ax |
| Wireless Frequency Range | 2400-2483.5 MHz, 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz |
| Wireless Security Encryption | WPA/WPA2;WPA-PSK/WPA2-PSK |
Performance
| Card Reading Distance | 0 cm – 3 cm |
|---|---|
| Face Recognition Height Range | 0.9 m – 2.4 m |
| Face Recognition Distance | 0.3 m – 3.0 m |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.1 s |
User
| User (Card) Type | General user/VIP user/patrol user/guest user/blocklist user /other user/custom user 1/custom user 2 |
|---|
Capacity
| Face Image Capacity | 100,000 |
|---|---|
| User Capacity | 100,000 |
| Card Capacity | 500000 |
| Password Capacity | 100000 |
| Record Capacity | 300000 |
Port
| RS-485 | 1 |
|---|---|
| RS-232 | 1 |
| Wiegand | 1, input/output configurable |
| USB | 1 × USB 2.0 port |
| Network Port | 1 × 10/100/1000 Mbps self-adaptive Ethernet port |
| Alarm Input | 2 (switch quantity) |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
| Doorbell | Yes, shared with alarm output port |
| Exit Button | Yes |
| Door Status Detection | Yes |
| Lock Control | 2 |
| Audio Port | Yes |
| Power Output Port | Yes (Under DC power supply, output 12 VDC, 1 A; Under PoE power supply, output 12 VDC, 0.5 A) |
| Audio Output Port | Yes |
Alarm
| Anti-pass Back | Yes |
|---|---|
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
General
| Power Adapter | Optional |
|---|---|
| Power Supply | 12 VDC, 2 A; Standard PoE |
| Protection | IP65 |
| Power Consumption | ≤24 W |
| Product Dimensions | 219.0 mm × 106.3 mm × 20.8 mm (8.62" × 4.19" × 0.82") (H × W × D) |
| Packaging Dimensions | 297.0 mm × 163 mm × 71 mm (11.69" × 6.42" × 2.80") (H × W × D) |
| Transport Package Dimensions | 390 mm × 320 mm × 360 mm (15.35" × 12.60" × 14.17") (H × W × D) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) (12 VDC power supply); –30 °C to +45 °C (–22 °F to +113 °F) (PoE power supply) |
| Operating Humidity | 0% – 90% RH (Non-condensing) |
| Operating Altitude | 0 m – 1300 m (0 ft – 4265.09 ft) |
| Operating Environment | Indoor;Outdoor |
| Gross Weight | 0.80 kg (1.76 lb) |
| Accessory | Wall-mount bracket(Standard) |
| Installation | Wall Mount;Floor Bracket Mount;Desk Bracket Mount;Turnstile Mount;86 mm Junction Box Mount |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 30% – 75% RH (Non-condensing) |
