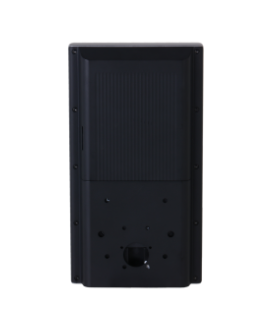

Dahua ASI7213K-W Fingerprint Access Control Extension Module：圖片 4

Dahua ASI7213K-W Fingerprint Access Control Extension Module

分類: , , , , 標籤: , ,

描述

Fingerprint Access Control Extension ModuleDahua Face Recognition,Face Detection,Card Swiping,Password Face Recognition Access Controller

> 7″ LCD with a resolution of 600 × 1024.

> 2-MP dual-lens CMOS camera.

> Supports 50,000 users, 50,000 faces, 50,000 passwords, 100,000 cards, 50 administrators, and 300,000 records.

> Multiple unlock methods including face, IC card, password and QR code.

> Recognizes faces 0.3 m to 3.0 m away (0.98 ft–9.84 ft), and detects persons between the height of 0.9 m and 2.4 m (2.95 ft–7.87 ft).

> Powered by the face recognition deep learning algorithm, the device can accurately locate over 360 key points on the face of a target.

> Faces can be recognized within 0.2 seconds, without need for the person to touch the device.

> Features face mask detection and safety helmet detection. Plays advertisements in video and image format.

> Supports extension modules for fingerprint, QR code and and fingerprint + QR code.

> Recognizes up to 6 faces at the same time.

Specifications

System
Main ProcessorEmbedded Processor
Button TypeTouch button
Network ProtocolUDP;TCP;IPv4;RTSP;SIP;P2P;RTP
OSDP ProtocolYes
InteroperabilityCGI;ONVIF
SDK and APIYes
Basic
Product TypeStandalone
Display Screen7″ LCD
Screen TypeCapacitive Touchscreen
Screen Resolution600 (H) × 1024 (V)
Camera1/2.8″ 2-MP CMOS HD dual-lens camera
WDRDWDR
Light CompensationAuto IR
Voice PromptYes
Casing MaterialTempered glass; PC
Function
Unlock ModeCard; remote; password; face; combination unlock; extension modules (fingerprint; QR code; face; face + QR code; fingerprint + QR code)
Card TypeIC card
Period List128 periods
Holiday Period128 periods
Network UpdateYes
First User UnlockYes
Remote VerificationYes
Restricted List/Trusted ListYes
Wi-FiYes
Wireless Standard802.11b/g/n
Wireless Frequency Range2.400 GHz–2.472 GHz
Advertisement PlayingSupport graphic advertisement play
Peripheral Card Reader1 × RS-485 port; 1 × Wiegand port
Multi-user AuthenticationYes
Real-time MonitoringYes
Multi-factor AuthenticationYes
Capture FunctionYes
Web ConfigurationYes
Auto RegistrationYes
Performance
IC Card EncryptionYes
Card Reading Distance0 cm–4 cm (0″–1.57″)
Face Recognition Height Range0.9 m–2.4 m (2.95 ft–7.87 ft)
Face Recognition Distance0.3 m–3.0 m (0.98 ft–9.84 ft)
Face Recognition Accuracy99.9%
Face Recognition Time0.2 s
Supported CodesQR code
Code TypeElectronic code; Printed code
Code Recognition AccuracyRecognition rate: >80%
Accuracy: >90%
User
User (Card) TypeGeneral users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users
Capacity
User Capacity50000
Face Image Capacity50000
Card Capacity100000
Password Capacity50000
Record Capacity300000
Port
RS-4851
RS-2321
Wiegand1 (inout or output)
USB1 × USB 2.0 port
Network Port1 × RJ-45 10/100/1000 Mbps Ethernet port
Alarm Input2 (digital quantity)
Alarm Output1 (relay)
Alarm LinkageYes
Exit Button1
Door Status Detection1
Lock Control1
Alarm
Anti-pass BackYes
Tamper AlarmYes
Duress AlarmYes
Door Sensor TimeoutYes
IntrusionYes
Illegal Card Exceeding ThresholdYes
General
Power AdapterIncluded
Power Supply12 VDC, 2 A
ProtectionIP65
Power Consumption≤6 W (standby), ≤12 W (working)
Product Dimensions213 mm × 116 mm × 28.6 mm (8.39″ × 4.57 × 1.13) (H × W × D)
Packaging DimensionsCarton: 330 mm × 148 mm × 111 mm (12.99″ × 5.83″ × 4.37″) (H × W × D)
Protection box: 585 mm × 320 mm × 360 mm (23.03″ × 12.60″ × 14.17″) (H × W × D)
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity0%–90% (RH), non-condensing
Operating Altitude0 m–1,300 m (0 ft–4,265.09 ft)
Operating EnvironmentOutdoor
Gross Weight1.2 kg (2.65 lb)
AccessoryIncluded: Wall mount bracket
InstallationTurnstile Mount;86 case mount;Wall;Floor Bracket Mount
