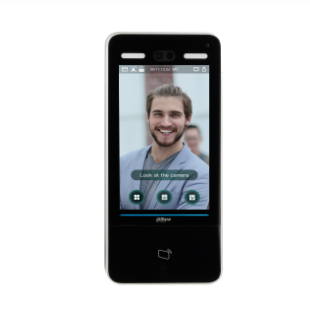

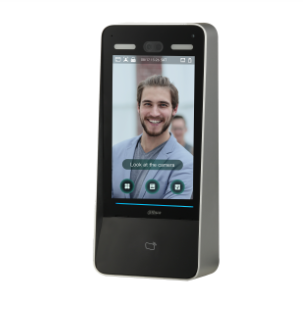

Dahua ASI8213Y-V3 Face Recognition Access Controller

描述

Face Recognition Access Controller

> Aluminium alloy housing with wire-drawing treatment; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

> 10.1 inch LCD touch screen; resolution 1280×800

> With 2 MP wide-angle dual lens, white fill light, IR light, and WDR

> Support face, card and password unlock; unlock by period

> User data can be stored at the access controller; can hold 100, 000 face images and work without network

> Face-camera distance: 0.3m-2.0m

> Face verification accuracy ≥99.5%; face comparison speed ≤0.2s per person; low false recognition rate Support liveness detection

System
Main ProcessorEmbedded Processor
Network ProtocolIPv4, RTSP, RTP, TCP, UDP, P2P
OSDP ProtocolSupport
InteroperabilityCGI
SDKSupport
Basic
Display10.1 inch TFT screen
Screen TypeCapacitive touch screen
Screen Resolution1280×800
Camera2MP CMOS
WDR120dB
Light CompensationAuto whitelight fill light
Auto IR fill light
Status Indicator Light1 indicator lights. Red: Recognition failed; Green: Recognition succeeded; Blue: Standby mode
Voice PromptSupport
Housing MaterialPC+ABS; Aluminum alloy frame
Function
Unlock ModeCard/Password/Face unlock

Card, password, and face combination unlock

Card Reader TypeIC card
Period List128
Holiday Period128
First-card UnlockSupport
Remote VerificationSupport
Peripheral Card Reader1 RS-485 and 1 Wiegand
Multi-card UnlockSupport
Real-time SurveillanceSupport
Web ConfigurationSupport
Card Reading Distance1 cm–4 cm
Face Recognition RangeFace-camera distance: 0.3 m–2.0 m Human height:0.9 m–2.4 m
Face Verification Accuracy≥99.5%
Face Recognition Speed0.2s
Capacity
User Amount100, 000
Face Amount100, 000
Card Amount100, 000
Password Amount100, 000
Storage Record Amount100, 000
Port
RS-4851
RS-2321
Wiegand1 (26, 34, 66)
USB1 USB2.0 port
Network1 100M Ethernet port
Alarm Input2
Alarm Output2
Alarm LinkageSupport
Unlock Button1
Door Status Detection1
Door Lock Control1
Alarm
Anti-passbackSupport
TamperSupport
DuressSupport
Door Sensor TimeoutSupport
Illegal IntrusionSupport
Illegal Card Exceeding Threshold AlarmSupport
General
Power SupplyDC 12V 2A
Ingress ProtectionIP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Power Consumption≤24W
Dimensions396.9mm×185.6mm×77.2mm
Operating Temperature-30°C to +60°C
Operating Humidity5%RH–95%RH
Working EnvironmentIndoor and outdoor
Gross Weight4.32 kg
InstallationWall mount
CertificationsCE/FCC
