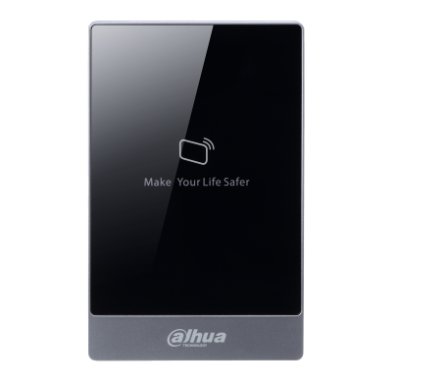

Dahua ASR1100A ASR1100A-D RFID Reader

描述

RFID Reader

> Support RS485, Wiegand34 protocol(Wiegand 26 optional)
> 13.56MHz(Mifare)
> 125KHz(EM-ID)
> Red and Green LEDs
> Watch dog function ensure device free from halting
> Beep Buzzer and LED indicator
> Surface mounted installation

Technical Specification

Mode

ASR1100A

ASR1100A-D

System

Main Processor

8 Bit

Read

Read Format

13.56MHz

125KHz

Read Range

1cm–8cm (max.)

Reading time

<0.1s

Function

Tamper Alarm

Yes

Interface

To Controller

RS485, Wiegand34(Wiegand 26 optional)

General

LED Display

Blue backlight

Beep Tone

Buzzer

Power Supply

9V–15V DC/100mA

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

Dimension(W×D×H)

87mm×13mm×136mm

Weight

0.25kg

Working Environment

Indoor

Certificates

CE

Yes

FCC

Yes
