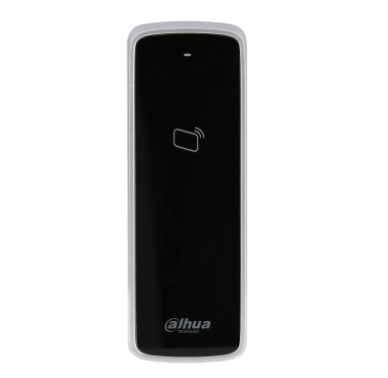

Dahua ASR1200D ASR1200D-D Slim Water-proof RFID Reader

描述

Slim Water-proof RFID Reader

> Support RS485, Wiegand34 protocol(Wiegand 26 optional)
> 13.56MHz(Mifare)
> 125KHz(EM-ID)
> Red and Blue LEDs
> Watch dog function ensure device free from halting
> Water-proof(Outdoor use)
> Surface/Flush mounted installation

Technical Specification

Model

ASR1200D

ASR1200D-D

System

Main Processor

8 Bit

Read

Read Format

13.56MHz

125KHz

Read Range

1cm–2cm (max.)

Reading time

<0.1s

Function

Tamper Alarm

Yes

Interface

To Controller

RS485, Wiegand34(Wiegand 26 optional)

General

LED Indicator

Yes

Ingress Protection

IP55

Beep Tone

Buzzer

Power Supply

9V–15V DC/100mA

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

Dimension(W×D×H)

135×47.5×16mm

Weight

0.18kg

Working Environment

Outdoor

Certificates

CE

Yes

FCC

Yes
