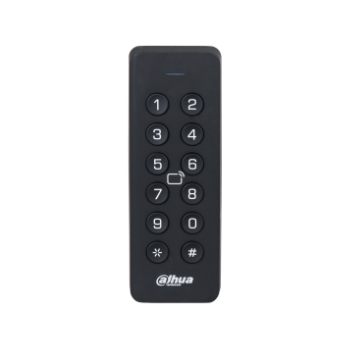

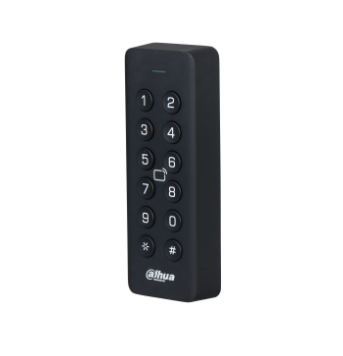

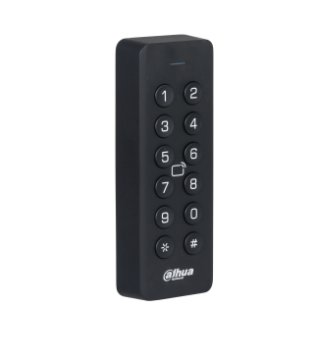

Dahua ASR2101H Access Reader

描述

Access Reader

> Card unlock and password unlock.

> RS-485 and Wiegand 34 communication (Wiegand 26 can be configured).

> Prompts using the buzzer and indicator light.

> Tamper alarm.
> Watchdog monitors and controls the device when it behaves
> All the connection ports have overcurrent and overvoltage protection.
> IP66 rated.

System

OSDP Protocol

Yes

Button Type

Mechanical

Basic

Product Type

Card reader

Buzzer

Yes

Backlight

Yes

Casing Material

PC + ABS

Function

Unlock Mode

Card, password

Card Type

IC card

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–8 cm (0″–3.15″)

Port

RS-485

1

Wiegand

1 channel output

Alarm

Tamper Alarm

Yes

General

Power Supply

12 VDC, 0.5 A

Protection

IP66

Power Consumption

≤ 0.48 W (standby), ≤ 1.2 W (working)

Product Dimensions

127 mm × 46 mm × 20 mm (5.00″ × 1.81″ × 0.79″)

Packaging Dimensions

139 mm × 73 mm × 48 mm (5.47″ × 2.87″ × 1.89″)

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

Operating Environment

Outdoor

Gross Weight

104 g (0.23 lb)

Installation

Surface Mount
