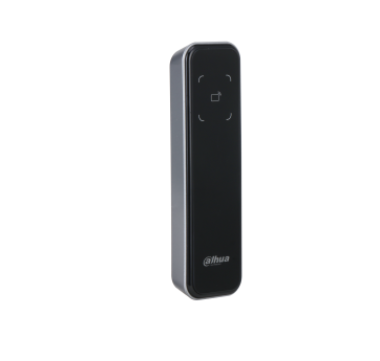

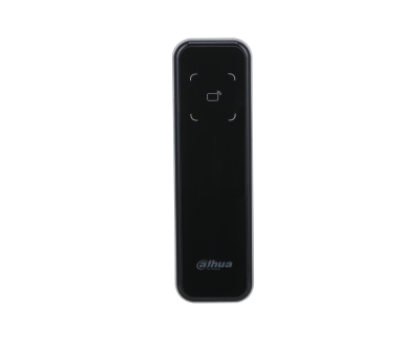

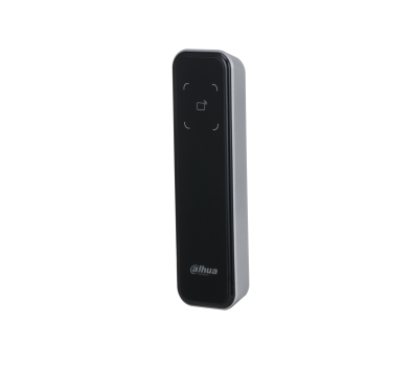

Dahua ASR2200A ASR2200A-D Access Reader

描述

Access Reader

> PC material, tempered glass panel and IP66, suitable for indoor and outdoor use

> Support contactless recognition of IC card (Mifare card)

> Support card unlock

> Support RS485 and Wiegand communication

> Support buzzer and indicator prompt

> Support anti-tampering alarm

> The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment

> All connection ports have overcurrent and overvoltage protection

Basic

Product Type

Slim Card Reader

Buzzer

Yes

Casing

Tempered glass/PC

Function

Unlock Mode

Card swiping

Card Type

IC card/ID card

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–5 cm (0″–1.97″)

Port

RS-485

1 channel

Wiegand

1 output channel

Alarm

Tamper Alarm

Yes

Tamper Alarm

Yes

General

Power Supply

12V 0.5A DC

Protection

IP66 (silicon sealant is needed, see the manual)

Power Consumption

Standby ≤ 0.9W, working ≤ 1.7W

Product Dimensions

135 mm × 40 mm × 15 mm (5.31″ × 1.57″ × 0.59″) (L × W× H)

Packaging Dimensions

195 mm × 75 mm × 52 mm (7.68″ × 2.95 × 2.05″)

(L × W× H, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34″ × 15.75″ × 9.06″) (L × W × H, carton)

Operating Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor; outdoor

Gross Weight

0.16 kg (0.35 lb)

Installation

Surface mount

Certifications

CE; FCC
