描述

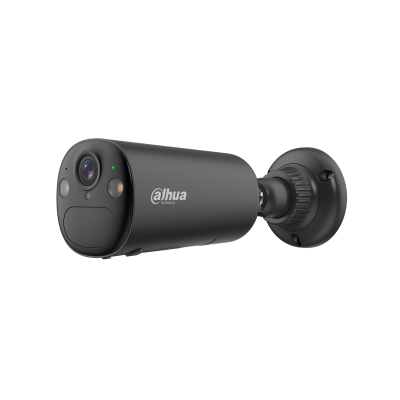

BF4CA-4G-XL
4MP Fixed-focal 4G Battery Bullet Network Camera
BF4CA-4G-XL 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/3" CMOS |
| Max. Resolution |
2560 (H) × 1440 (V) |
| Illumination Distance |
Up to 15 m (49.21 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator Number |
2 (Multi-core (IR + warm) light) |
| Angle Adjustment |
Pan: 0° to 360° Tilt: –60° to 0° Rotation: 0° to 360° |
| PIR Sensor Distance |
12 m (the height of device is 2.5 m, placed horizontally); 8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal) |
| Lens Type |
Fixed-focal |
| Focal Length |
2.1 mm |
| Max. Aperture |
F1.6 |
| Field of View |
H: 122.5°; V: 66°; D: 144.5° |
Intelligence
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Audio and Video
| Video Compression |
H.265 |
| Video Frame Rate |
Main stream: 2560 × 1440@(1–15 fps) Sub stream: 640 × 360@(1–15 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate |
H.265: 32 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| WDR |
Yes |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
G.711a; G.711Mu; PCM |
Network
| Carrier Network System |
(-EAU): FDD-LTE: B1/B3/B5/B7/B8/B20/B28; Applicable regions: Europe, Middle East, Africa Power class 3: 23dBm ±2.7dB (-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; Applicable regions: Latin America Power class 3: 23dBm ±2.7dB |
| Storage |
Micro SD card (support max. 512 GB) |
| Management Software |
DMSS |
| Mobile Client |
Android;iOS |
General
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
| Power Supply |
Built in 32Wh lithium battery Charging: USB Type-C |
| Power Consumption |
Ultra power saving mode: 0.04 W Power saving mode: 0.041 W AOV mode: 0.2 W Performance mode: 1.2 W |
| Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Protection |
IP66 |
| Camera Button |
Reset Button; Power Button |
| Casing Material |
Plastic |
| Product Dimensions |
186.5 mm × Φ65.0 mm (7.34" × Φ2.56") |
| Net Weight |
0.37 kg (0.82 lb) |
Battery
