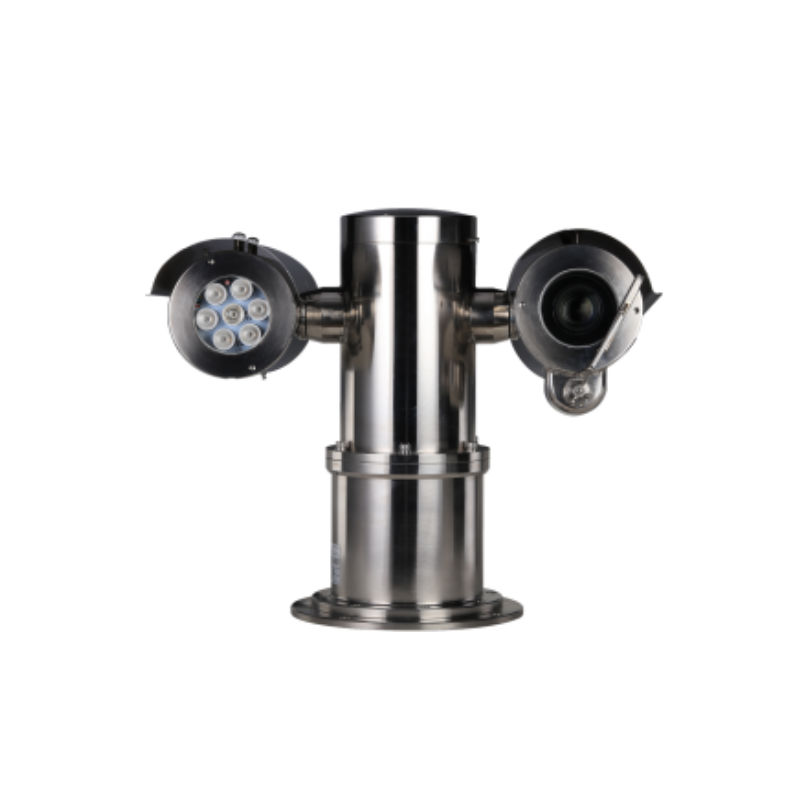

DAHUA EPC245U-PTZ-IR

2MP 45x Explosion-proof IR Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 45x optical zoom
> 316L stainless steel housing
> Starlight technology
> H.265/H.264 Triple-stream Encoding
> Max. 50/60fps@1080P
> IR distance up to 200m
> IP68

描述

Camera

Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM512M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6(IR on)
IR DistanceDistance up to 200m (656ft)
IR On/Off ControlAuto/Manual
IR LEDs7
WiperSupport

Lens

Focal Length3.95mm~177.7mm
Max. ApertureF1.6~ F4.95
Angle of ViewH: 70.3° ~ 1.8°
Optical Zoom45x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
2345m(7694ft)938m(3077ft)469m(1539ft)234m(768ft)

PTZ

Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -90° ~ 90°
Manual Control SpeedPan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s
Preset SpeedPan: 40° /s; Tilt: 40° /s
Presets256
PTZ Mode5 Scan, 8 Tour
Speed SetupHuman-oriented focal Length/speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/Scan/Tour if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)

Video

CompressionH.265+/H.265/H.264+/H.264
Streaming Capability3 Streams
Resolution1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain stream: 1080P/1.3M/720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)Support
DefogSupport
Digital Zoom16x
Flip180°

Audio

CompressionG.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2

Network

EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android

Interface

Video Interface1 coaxial cable(75Ω)
RS4851
Audio I/O1/1
Alarm I/O2/1

Certifications

CertificationsATEX: EN 60079-0/EN 60079-1/EN 60079-28/EN 60079-31

IECEx : IEC 60079-0/IEC 60079-1/EN 60079-28/IEC 60079-31

Explosion-proof MarkingATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db

IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db

Electrical

Power SupplyAC220V(AC100V ~ 240V)
Power Consumption40W, 75W (IR on, Heater On)

Environmental

Operating Conditions-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Storage Temperature-40°C ~ 65°C (-40°F ~ +149°F)
Ingress ProtectionIP68
Vandal ResistanceN/A

Construction

Casing316L Stainless Steel
DimensionsΦ517mm×407mm×301mm
Net Weight28.9kg(63.71lb)
Gross Weight35kg(77.16lb)
