描述

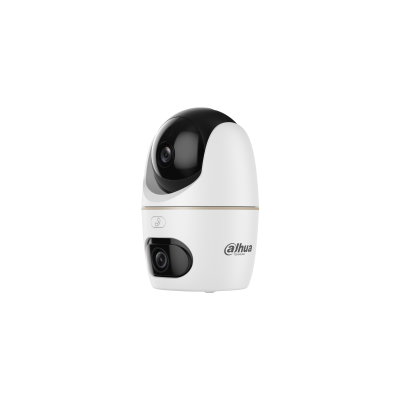

H3D-3F
3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
H3D-3F 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Audio and Video
| Video Compression | H.265 |
|---|---|
| Video Frame Rate | Main stream: 2304 × 1296@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS;Android |
Function
| Abnormal Sound Alarm | Yes |
|---|---|
| Privacy Mode | Yes |
General
| Certifications | CE |
|---|---|
| Power Supply | 5 VDC |
| Power Consumption | Basic: 2.3 W Max.: 5.2 W (pulling stream+ IR + PT rotation) |
| Operating Temperature | –10 °C to +45 °C (–4 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Casing Material | Plastic |
| Product Dimensions | Φ80.9 mm × 125.7mm (3.19" × Φ4.95") |
| Net Weight | 233 g (0.51 lb) |
