DAHUA HAC-D3A21-VF

描述

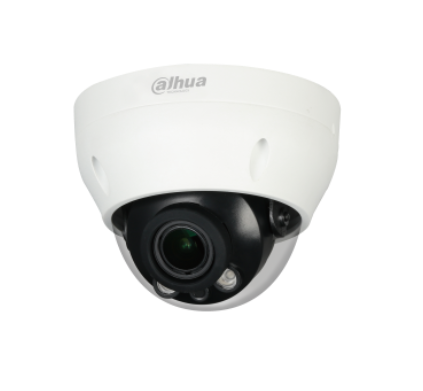

DAHUA HAC-D3A21-VF

2MP HDCVI IR Dome Camera

> Max. 30 fps@1080p

> CVI/CVBS/AHD/TVI switchable

> 2.7-12 mm vari-focal lens

> Max. IR length 30 m, Smart IR

> IP67,12 VDC

Specifications

Camera

Pixel

2 MP

Image Sensor

2MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.04 lux@F1.7 (Color, 30 IRE)

0.004 lux@F1.7 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Manual Vari-focal

Lens Mount

φ14

Focal Length

2.7 – 12 mm

Max. Aperture

F1.7

Field of View

H: 102°–32°; V: 54°–18°; D: 121°–37°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

45.5 m

(149.28 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

4.6 m

(15.09 ft)

T

137.9 m

(452.43 ft)

55.2 m

(181.10 ft)

27.6 m

(99.55 ft)

13.8 m

(45.28 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
TVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
AHD:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

2D NR

Smart Illumination

Yes

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max. 3.5 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing

Plastic

Product Dimensions

Φ122 mm × 97.6 mm (Φ4.80″ × 3.84″)

Packaging Dimensions

147 mm × 138 mm × 135 mm (5.79″ × 5.43″ × 5.31″)

Net Weight

0.30 kg (0.66 lb)

Gross Weight

0.42 kg (0.93 lb)

Installation

Wall mount; ceiling mount; horizontal pole mount
