DAHUA HAC-HDW1200TMQ-Z(-A)

描述

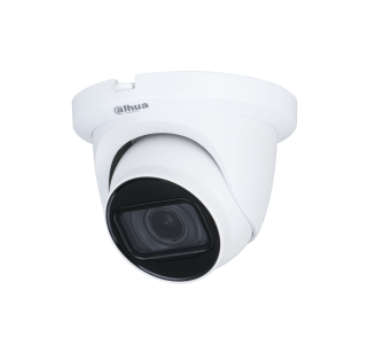

DAHUA HAC-HDW1200TMQ-Z(-A)

2MP IR HDCVI Motorized Vari-Focal Eyeball Camera

* The parameters and datasheets below can only be applied to 1200-S6 series.

> Max. 30 fps@1080p.

> Smart IR Illumination.
> 60 m illumination distance.
> Super Adapt.
> 2.7 mm–12 mm motorized lens.
> Quick-to-install eyeball saves installation time.
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Specifications

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

No

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

47.4 m
(155.51 ft)

18.9 m
(62.01 ft)

9.5 m
(31.17 ft)

4.7 m
(15.42 ft)

12 mm

155.6 m
(510.50 ft)

62.2 m
(204.07 ft)

31.1 m
(102.03 ft)

15.6 m
(51.18 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal dome + metal enclosure + plastic mounting plate

Product Dimensions

φ135 mm × 109 mm (φ5.31″ × 4.28″)

Net Weight

0.51 kg (1.12 lb)

Gross Weight

0.69 kg (1.52 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
