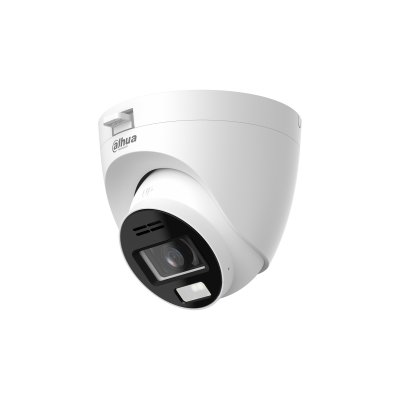

HAC-HDW1200TRQ-IL-T
2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera
HAC-HDW1200TRQ-IL-T 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 2 MP CMOS |
|---|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 25 m (82.02 ft); Warm light: 25 m (82.02 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Multi-core light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°3.6 mm: H: 89°; V: 48.2°; D: 109.1° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft)3.6 mm: 0.7 m (2.30 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentify2.8 mm 40.6 m( 133.20 ft) 16.2 m( 53.15 ft) 8.1 m( 26.57 ft) 4.1 m ( 13.45 ft)3.6 mm 49.9 m( 163.71 ft) 20.0 m( 65.62 ft) 10.0 m( 32.81 ft) 5.0 m ( 16.40 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Video
| Video Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|---|---|
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL (CVI, TVI); WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
Certification
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes |
|---|---|
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Two-way Talk | Yes (CVI, TVI) |
| Speaker | Yes |
| Speaker Distance | 5 m (16.40 ft) |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|---|
Power
| Power Supply | 12 VDC (±30%) |
|---|---|
| Power Consumption | Max 4.62 W (12 VDC, IR on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Plastic |
|---|---|
| Product Dimensions | Φ97.4 mm × 90.4 mm (Φ3.83" × 3.56") |
| Net Weight | 0.17 kg (0.37 lb) |
| Gross Weight | 0.27 kg (0.60 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
