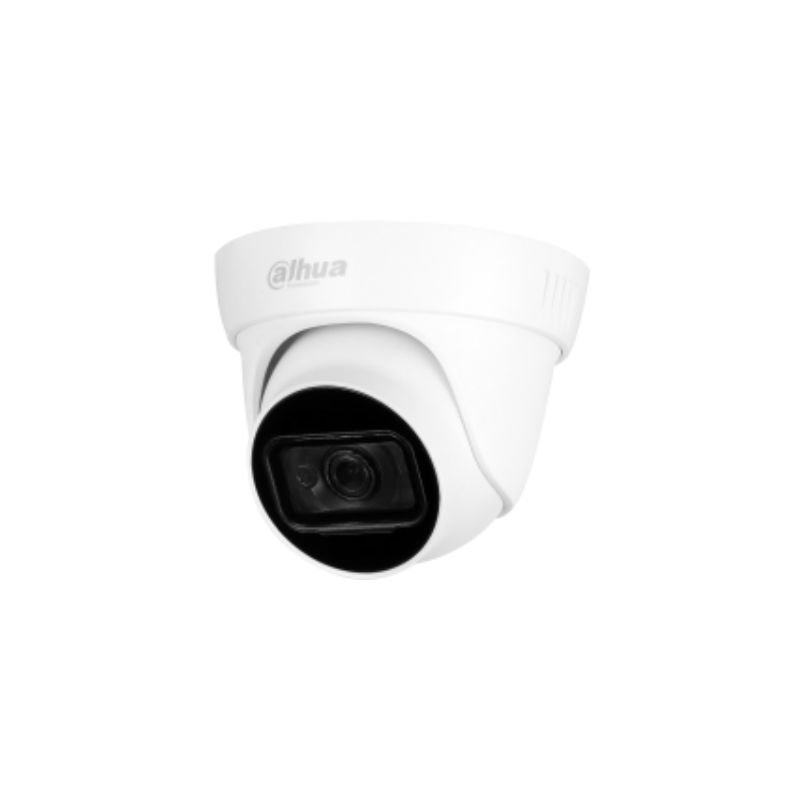

DAHUA HAC-HDW1230TLTL-A

2MP Starlight HDCVI IR Eyeball Camera

> Starlight
> Max. 30fps@1080P
> CVI/CVBS/AHD/TVI switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V

描述

Camera

Image Sensor

1/2.8 inch CMOS

Effective Pixels

1920 (H)×1080 (V), 2MP

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Minimum Illumination

0.005Lux/F1.6, 30IRE, 0Lux IR on

IR Distance

30m (98.42ft)

IR On/Off Control

Auto; manual

IR LEDs Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm

Max. Aperture

F1.6/F1.6

Angle of View

2.8mm: 126.2°×106.0°×56.5° (diagonal×horizontal×vertical)
3.6mm: 103.6°×86.9°×46.3° (diagonal×horizontal×vertical)

Iris Type

Fixed iris

Close Focus Distance

0.6m (1.97ft)/1.2m (3.94ft)

DORI Distance

2.8mm: D: 39m (128ft); O: 15m (49ft); R: 8m (26ft); I: 4m (13ft)
3.6mm: D: 55m (180ft); O: 22m (72ft); R: 11m (36ft); I: 6m (20ft)

Video

Video Frame Rate

CVI:
PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps
AHD: PAL: 1080P@25fp; 720P@25fps
NTSC: 1080P@30fp; 720P@30fps
TVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps
NTSC: 1080P@30fp; 720P@30fps; 720@60fps

CVBS: PAL: 960H
NTSC: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 Area, Rectangle)

Certification

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Port

Built-in mic (-A)

Power

Power Supply

12V±30% DC

Power Consumption

Max 3.7W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Inner core: metal+plastic; cover: plastic

Dimensions

Φ97.0mm×85.8mm (Φ3.82″×3.38″)

Net Weight

0.22kg (0.49lb)

Gross Weight

0.28kg (0.62lb)
