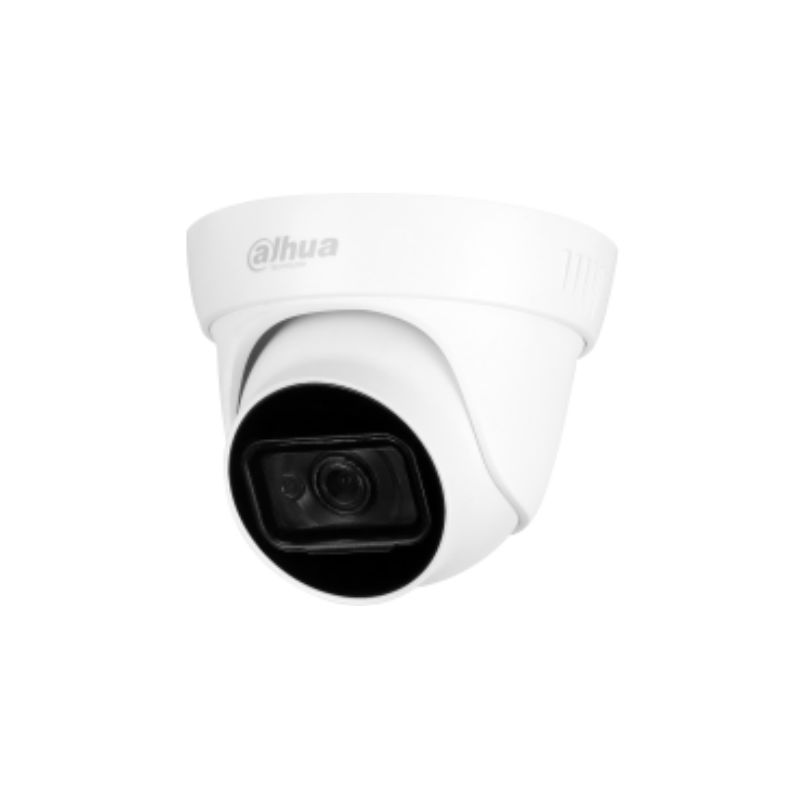

DAHUA HAC-HDW1400TLTL-A

4MP HDCVI IR Eyeball Camera

> Max. 30pfs@4MP
> CVI/CVBS/AHD/TVI switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 30m, Smart IR
> IP67, DC12V

描述

Camera

Image Sensor1/2.7 inch CMOS
Effective Pixels2560 (H)×1440 (V), 4MP
Electronic Shutter SpeedPAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
IR Distance30m (98.42ft)
IR On/Off ControlAuto; manual
IR LEDs Number1
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm; 3.6mm
Max. ApertureF2.0/F2.0
Angle of View2.8mm: 115.0°×97.0°×52.0° (diagonal×horizontal×vertical)
3.6mm: 89.5°×76.4°×41.6° (diagonal×horizontal×vertical)
Iris TypeFixed iris
Close Focus Distance0.8m (2.62ft)/1.4m (4.59ft)
DORI Distance2.8mm:D:56m(184ft);O:22m(72ft);R:11m(36ft),I:6m(20ft);

3.6mm:D:80m(262ft),O:32m(105ft),R:16m(52ft),I:8m(26ft);

Video

Video Frame RateCVI:
PAL: 4M@25fp; 1080P@25fp
NTSC: 4M@30fp; 1080P@30fp
AHD: PAL: 4M@25fp
NTSC: 4M@30fp
TVI: PAL: 4M@25fp
NTSC: 4M@30fp
CVBS: PAL: 960H
NTSC: 960H
Resolution4M (2560×1440); 1080P (1920×1080); 960H (960× 576/960×480)
Day/NightAuto switch by ICR
BLCBLC/HLC/DWDR
WDRDWDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D NR
Smart IRYes
MirrorOff/On
Privacy MaskingOff/On (8 Area, Rectangle)

Certification

CertificationsCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video PortVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio PortBuilt-in mic (-A)

Power

Power Supply12V±30% DC
Power ConsumptionMax 4W (12V DC, IR on)

Environment

Operating Temperature-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Storage Temperature-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Protection GradeIP67

Structure

CasingInner core: metal+plastic; cover: plastic
DimensionsΦ97.0mm×85.8mm (Φ3.82″×3.38″)
Net Weight0.22kg (0.49lb)
Gross Weight0.28kg (0.62lb)
