描述

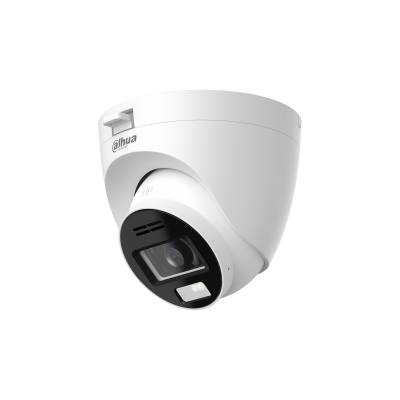

HAC-HDW1500TRQ-IL-T
5MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera
HAC-HDW1500TRQ-IL-T 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 5 MP CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 25 m (82.02 ft); Warm light: 25 m (82.02 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Multi-core light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 112°; V: 61°; D: 132.4°3.6 mm: H: 89.1°; V: 48.5°; D: 104° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1 m (3.28 ft)3.6 mm: 1.5 m (4.92 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentify2.8 mm 61.2 m( 200.79 ft) 24.5 m( 80.38 ft) 12.2 m( 40.03 ft) 6.1 m ( 20.01 ft)3.6 mm 77.8 m( 255.25 ft) 31.1 m( 102.03 ft) 15.6 m( 51.18 ft) 7.8 m ( 25.59 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Video
| Video Frame Rate | CVI: PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
|---|---|
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1664) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL (CVI, TVI); WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
Certification
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes |
|---|---|
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Two-way Talk | Yes (CVI, TVI) |
| Speaker | Yes |
| Speaker Distance | 5 m (16.40 ft) |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|---|
Power
| Power Supply | 12 VDC (±30%) |
|---|---|
| Power Consumption | Max 4.77 W (12 VDC, IR on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Plastic |
|---|---|
| Product Dimensions | Φ97.4 mm × 90.4 mm (Φ3.83" × 3.56") |
| Net Weight | 0.17 kg (0.37 lb) |
| Gross Weight | 0.27 kg (0.60 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
