描述

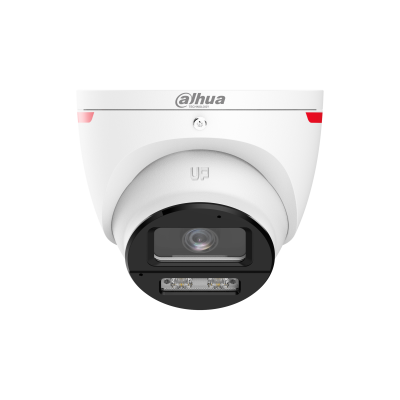

HAC-HDW1549SM-A-PRO
5MP WizColor HDCVI Fixed-focal Eyeball Camera
HAC-HDW1549SM-A-PRO 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 5 MP CMOS |
|---|---|
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.0001 [email protected] (Color, 30 IRE) 0.00001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | Warm light: 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal |
|---|---|
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 109.6°; V: 57.5°; D: 131°3.6 mm: H: 88.2°; V: 47.6°; D: 104.5° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 3.0 m (9.84 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentify2.8 mm 66.0 m( 216.54 ft) 26.4 m( 86.61 ft) 13.2 m( 43.31 ft) 6.6 m ( 21.65 ft)3.6 mm 78.0 m( 255.91 ft) 31.2 m( 102.36 ft) 15.6 m( 51.18 ft) 7.8 m ( 25.59 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Video
| Video Frame Rate | CVI: PAL: 5M@25 fps; [email protected] fps NTSC: 5M@25 fps; 5M@10 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M@20 fps NTSC: 5M@20 fps CVBS: PAL: 960H NTSC: 960H |
|---|---|
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Color |
| BLC | BLC; HLC; WDR |
| WDR | 130 dB |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes (It needs to be controlled through the XVR) |
| Illumination Mode | Smart Light |
| Mirror | Yes (It needs to be controlled through the XVR) |
Certification
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes, built-in dual Mic |
|---|---|
| Camera Audio | CVI |
| Pick-up Distance | 12 m (39.37 ft) |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|---|
Power
| Power Supply | 12 VDC (±30%) |
|---|---|
| Power Consumption | Max 4.5 W (12 VDC, LED on) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|---|
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | Φ94.0 mm × 83.7 mm (Φ3.70" × 3.30") |
| Net Weight | 0.34 kg (0.75 lb) |
| Gross Weight | 0.43 kg (0.95 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
