描述

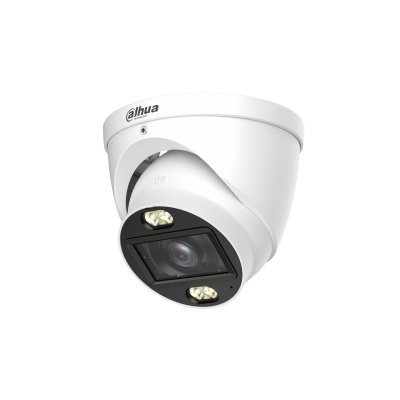

HAC-HDW1801T-Z-IL-A
4K Smart Dual Light HDCVI Motorized Vari-Focal Eyeball Camera
HAC-HDW1801T-Z-IL-A 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 4K CMOS |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 80 m (262.47 ft)；Warm Light: 60 m (196.85 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (Multi-core light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens
| Lens Type | Motorized vari-focal |
|---|---|
| Auto Focus | No |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 32.7°–111.8°; V: 18.4°–58.3°; D: 37.5°–135.2° |
| Iris Control | Fixed |
| Close Focus Distance | 1.2 m (3.94 ft) |
| DORI Distance | LensDetectObserveRecognizeIdentifyW 87.2 m( 286.09 ft) 34.9 m( 114.50 ft) 17.4 m( 57.09 ft) 8.7 m ( 28.54 ft)T 269.3 m( 883.53 ft) 107.7 m( 353.35 ft) 53.9 m( 176.84 ft) 26.9 m ( 88.25 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function |
Video
| Video Frame Rate | CVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H@50 fps NTSC: 960H@60 fps |
|---|---|
| Resolution | 4K (3840 × 2160); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | WDR |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL (CVI, TVI); WL Mode; IR Mode |
| Mirror | Yes |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
|---|
Audio
| Built-in Mic | Yes |
|---|---|
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
Port
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|---|
Power
| Power Supply | 12 VDC (±30%) |
|---|---|
| Power Consumption | Max 7.4 W (12 VDC, IR on) |
Environment
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|---|
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | Φ122 mm × 108.2 mm (Φ4.80" × 4.26") |
| Net Weight | 0.6 kg (1.32 lb) |
| Gross Weight | 0.76 kg (1.68 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
