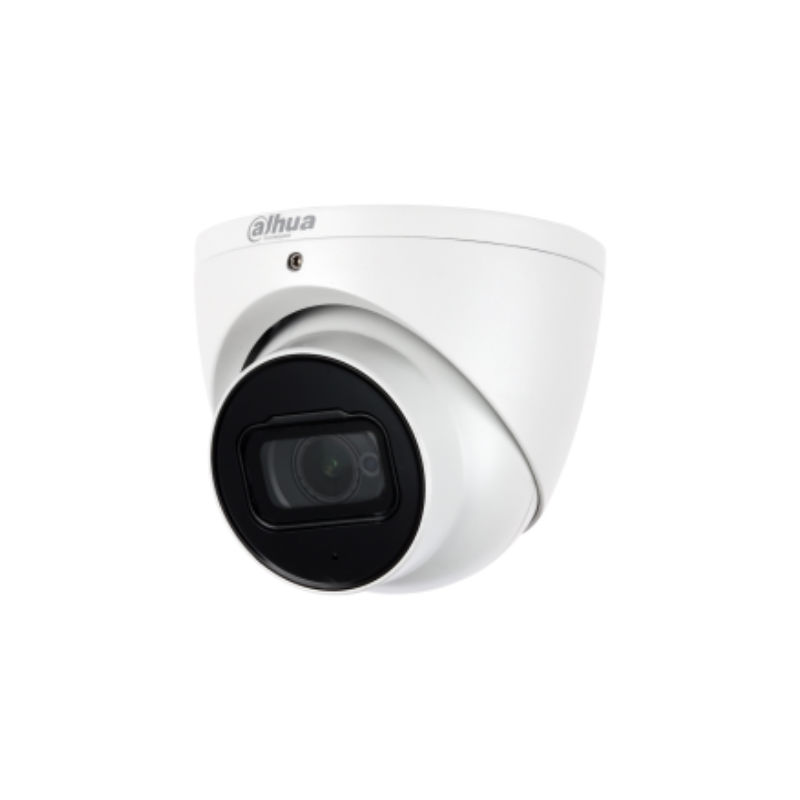

DAHUA HAC-HDW2241T-A

2MP Starlight HDCVI IR Eyeball Camera

> Starlight, 120dB true WDR, 3DNR
> Max. 30fps@1080P
> HD/SD output switchable
> Audio in interface, built-in mic
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 50m, Smart IR
> IP67, DC12V±30%

描述

Camera

Image Sensor1/2.8″ CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 50m (164feet)
IR On/Off ControlAuto / Manual
IR LEDs2

Lens

Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF1.6
Angle of ViewH: 86.9° (110°/52.8°)
Focus ControlAuto / Manual
Close Focus Distance1200mm (500mm, 2200mm)

47.2” (19.7″/ 86.6″)

Pan / Tilt / Rotation

Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect25px/m (8px/ft)2.8mm: 39m(128ft)

3.6mm: 55m(180ft)

6mm:83m(272ft)

Observe63px/m (19px/ft)2.8mm: 15m(49ft)

3.6mm:22m(27ft)

6mm:33m(108ft)

Recognize125px/m (38px/ft)2.8mm: 8m(26ft)

3.6mm: 11m(36ft)

6mm: 17m(56ft)

Identify250px/m (76px/ft)2.8mm: 4m(13ft)

3.6mm: 6m(20ft)

6mm: 8m(26ft)

Certifications

CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface1ch in & Built-in Mic

Electrical

Power Supply12V DC ±30%
Power ConsumptionMax. 5.3W (12V DC, IR on)

Environmental

Operating Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal ResistanceIP67

Construction

CasingAluminium
DimensionsΦ106mm×99.2mm (Φ4.17″×3.9″)
Net Weight0.50kg (1.10lb)
Gross Weight0.62kg (1.34lb)
