DAHUA HAC-HDW2241TMQ-A-POC

描述

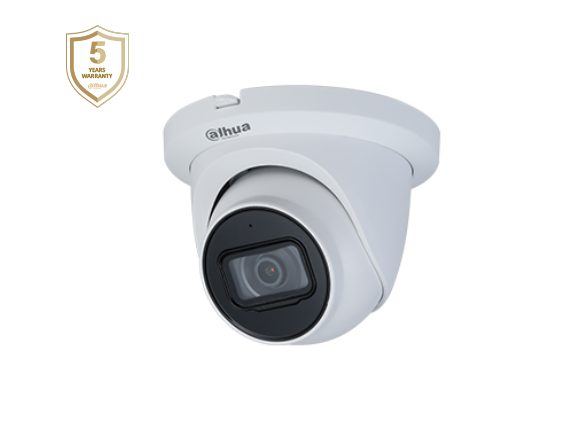

DAHUA HAC-HDW2241TMQ-A-POC

2 MP Starlight HDCVI Fixed IR Quick-to-install Eyeball Camera

* The parameters and datasheets below can only be applied to 2241-S2-POC series.

> Max 30 fps@1080p

> Quick-to-install eyeball saves installation time
> Starlight, 130 dB true WDR, 3D NR
> 3.6 mm fixed lens (2.8 mm, 6 mm optional)
> CVI/CVBS/AHD/TVI switchable
> Super Adapt
> Built-in mic
> Max. IR length 60 m, Smart IR
> IP67, PoC (only CVI)/12V±30% DC

Specifications

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 109°; V: 58°; D: 127°
3.6 mm: H: 86°; V: 46°; D: 101°
6 mm: H: 54°; V: 29°; D: 63°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
6 mm: 2.8 m (9.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

42.2 m

(138.5 ft)

16.9 m

(55.4 ft)

8.4 m

(27.6 ft)

4.2 m

(13.8 ft)

3.6 mm

53.7 m

(176.2 ft)

21.5 m

(70.5 ft)

10.7 m

(35.1 ft)

5.4 m

(17.7 ft)

6 mm

88.3 m

(289.7 ft)

35.3 m

(115.8 ft)

17.7 m

(58.1 ft)

8.8 m

(28.9 ft)

Video

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto/Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

POC (only CVI)/12V±30% DC

Power Consumption

Max 5.1W (12V DC, IR on) PoC (AF)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal dome+metal cover+plastic decorative ring

Camera Dimensions

Φ121.9 mm × 99.1 mm (Φ4.8″ × 3.9″)

Net Weight

0.45 kg (1.0 lb)

Gross Weight

0.62 kg (1.4 lb)
