DAHUA HAC-HDW2241TMQ-Z-A-POC

描述

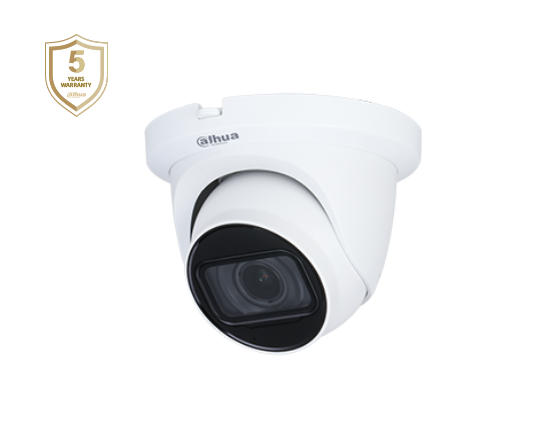

DAHUA HAC-HDW2241TMQ-Z-A-POC

2 MP Starlight HDCVI Motorized Vari-focal IR Quick-to-install Eyeball Camera

* The parameters and datasheets below can only be applied to 2241-S2-POC series.

> Max 30 fps@1080p

> Starlight, 130 dB true WDR, 3D NR
> Auto focus, 2.7 mm–13.5 mm motorized lens
> CVI/CVBS/AHD/TVI switchable
> Quick-to-install eyeball saves installation time
> Super Adapt
> Built-in mic
> Max. IR length 60m, Smart IR
> IP67, PoC (only CVI)/12V±30% DC

Specifications

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm-13.5 mm

Max. Aperture

F1.6

Field of View

Diagonal: 131°–35°
Horizontal: 108°–30°
Vertical: 56°–17°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft )

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

44.1 m

(144.7 ft)

17.6 m

(57.7 ft)

8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

13.5 mm

144.8 m (475.1 ft)

57.9 m

(190 ft)

28.9 m

(94.8 ft)

14.8 m

(48.6 ft)

Video

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto/Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Yes

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

POC (only CVI)/12 V±30% DC

Power Consumption

Max6.4W (12 VDC, IR on) PoC (AT)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F); < 95%

(non-condensation)

Storage Temperature

–30 °C to +60 °C (–22 °F to 140 °F); < 95%

(non-condensation)

Protection Grade

IP67

Structure

Casing

Metal dome+metal cover+plastic decorative ring

Camera Dimensions

φ135 mm × 109 mm (φ5.31″ × 4.28″)

Net Weight

0.53 kg (1.2 lb)

Gross Weight

0.71 kg (1.6 lb)
