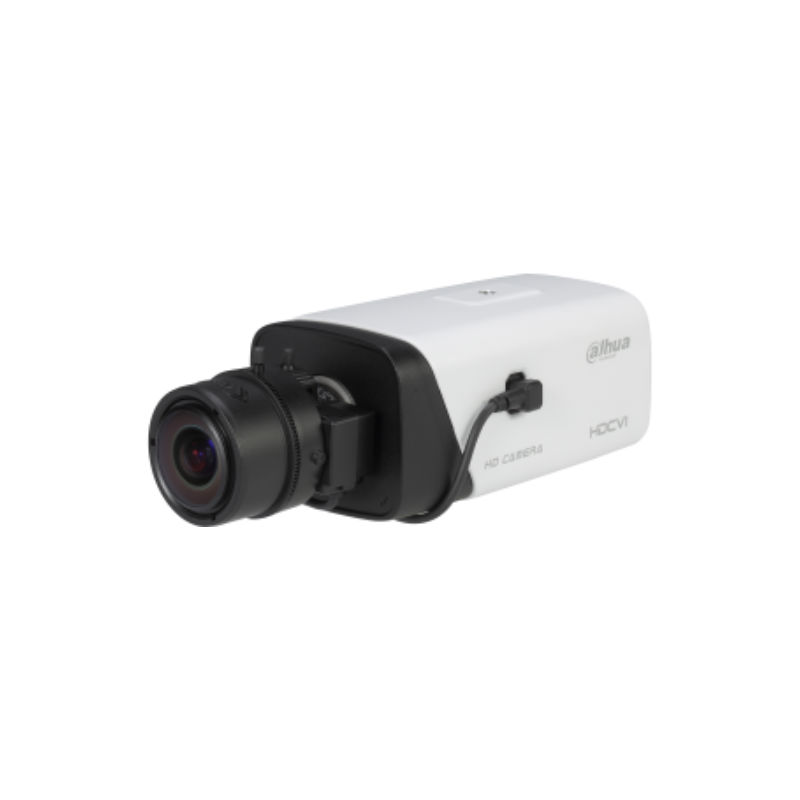

DAHUA HAC-HF3231E

2MP Starlight HDCVI Box Camera

> Starlight, 120dB true WDR, 3DNR
> Max 30fps@1080P
> HD and SD dual-output
> C/CS lens
> AC24V/DC12V

描述

Camera

Image Sensor1/2.8″ CMOS
Effective Pixels1945(H)×1097(V), 2.1MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination0.005Lux/F1.2 (Color), 0.0005Lux/F1.2 (B/W)
S/N RatioMore than 65dB
IR DistanceN/A
IR On/Off ControlN/A
IR LEDsN/A

Lens

Lens TypeC/CS lens / Auto iris
Mount TypeC/CS
Focal LengthN/A
Max ApertureN/A
Angle of ViewN/A
Focus ControlAuto / Manual
Close Focus DistanceN/A

Pan / Tilt / Rotation

Pan/Tilt/RotationN/A

Video

Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D / 3D
White BalanceAuto / Manual
Smart IRN/A

Certifications

CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface1-channel audio in
Alarm Interface2-channel alarm in & 1-channel alarm out

Electrical

Power SupplyAC 24V±25% / DC 12V±25%
Power ConsumptionMax 4.7W (12V DC, IR on)

Environmental

Operating Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal ResistanceN/A

Construction

CasingAluminium
Dimensions135.4mm×74.4mm×65.5mm (5.33″×2.93″×2.58″)
Net Weight0.49kg (1.08lb)
Gross Weight0.60kg (1.32lb)
