DAHUA HAC-HFW1200R-Z(-A)

描述

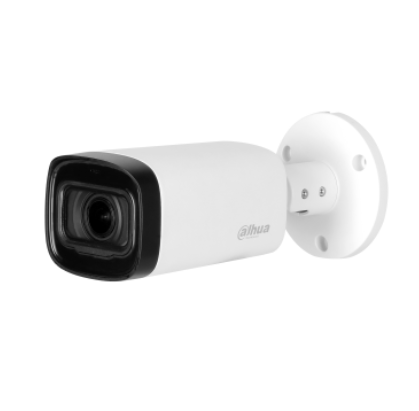

DAHUA HAC-HFW1200R-Z(-A)

2MP IR HDCVI Motorized Vari-Focal Bullet Camera

* The parameters and datasheets below can only be applied to 1200-S6 series.

> Max. 30 fps@1080p.

> Smart IR Illumination.
> 80 m illumination distance.
> Super Adapt.
> 2.7 mm–12 mm motorized lens.
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.



Specifications

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination Distance80 m (262.47 ft)
Illuminator On/Off ControlAuto
Illuminator Number4 (IR light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeMotorized Vari-focal
Auto FocusNo
Lens Mountφ14
Focal Length2.7 mm–12 mm
Max. ApertureF1.6
Field of ViewH: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°
Iris ControlFixed
Close Focus Distance0.8 m (2.62 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.7 mm47.4 m
(155.51 ft)
18.9 m
(62.01 ft)
9.5 m
(31.17 ft)
4.7 m
(15.42 ft)
12 mm155.6 m
(510.50 ft)
62.2 m
(204.07 ft)
31.1 m
(102.03 ft)
15.6 m
(51.18 ft)
Video
Video Frame RateCVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; DWDR
WDRDWDR
White BalanceAuto; Area white balance
Gain ControlAuto
Noise Reduction3D NR
Illumination ModeSmart IR
MirrorYes
Privacy MaskingOff/On (8 areas, rectangle)
Certification
CertificationsCE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply12 VDC ± 30%
Power ConsumptionMax 9.4 W (12 VDC, IR on)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Anti-corrosion LevelBasic Protection
Structure
Casing MaterialMetal
Product Dimensions209.6 mm × 90.4 mm × 90.4 mm (8.30″ × 3.56″ × 3.56″)
Net Weight0.55 kg (1.21 lb)
Gross Weight0.76 kg (1.68 lb)
InstallationWall mount; ceiling mount; vertical pole mount
