DAHUA HAC-HFW1200R-Z-IRE6-A-POC

描述

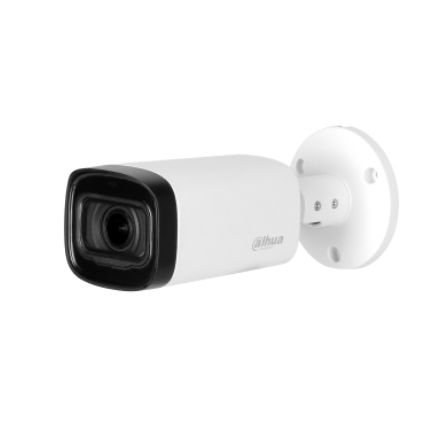

DAHUA HAC-HFW1200R-Z-IRE6-A-POC

2MP HDCVI POC Motorized Vari-focal IR Bullet Camera

* The parameters and datasheets below can only be applied to 1200-S5-POC series.

> Max 30 fps@1080P.

> 2.7mm-12mm motorized lens.

> CVI/CVBS/AHD/TVI switchable.

> Built-in mic.

> Max. IR length 60m, Smart IR.

> IP67, PoC (only CVI)/12V±30% DC.

Specifications

Camera
Image Sensor2MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Pixel2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

S/N Ratio> 65 dB
Min. Illumination0.02 Lux/F1.7, 30 IRE, 0 Lux IR on
Illumination Distance60 m (196.9 ft)
Illuminator On/Off ControlAuto
Illuminator Number4 (IR light)
Pan/Tilt/Rotation RangePan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens TypeMotorized Vari-focal
Auto FocusN/A
Mount Typeφ14
Focal Length2.7 mm–12 mm
Max. ApertureF1.7
Field of ViewDiagonal: 38°– 125°

Horizontal: 33°–102°

Vertical: 19°– 53°

Iris TypeFixed
Close Focus Distance1.2 m (3.9 ft)
DORI Distance2.7 mm: D: 49.7 m (163.1 ft); O: 19.9 m (65.3 ft); R: 9.9 m

(32.5 ft); I: 5 m (16.4 ft)

12 mm: D: 82.8 m (271.7 ft); O: 33.1 m (108.6 ft); R: 16.6 m (54.5 ft); I: 8.3 m (27.2 ft)

Video
Frame RateCVI:

1080p@25/30fps;

720p@25/30fps;

AHD:

1080p@25/30fps;

720p@25/30fps;

TVI:

1080p@25/30fps;

720p@25/30fps;

CVBS: 960H

Resolution1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
Day/NightAuto switch by ICR
BLCBLC/DWDR/HLC
White BalanceAuto/Area WB
Gain ControlAuto; manual
Noise Reduction2D NR
Smart IRYes
MirrorYes
Privacy MaskingOff/On (8 area, rectangle)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic
Power
Power SupplyPOC (only CVI)/12V±30% DC
Power ConsumptionMax7.2W (12 VDC, IR on); PoC (AT)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95%

(non-condensation)

Storage Temperature–30 °C to +60°C (–22 °F to 140 °F); ﹤ 95%

(non-condensation)

Protection GradeIP67
Structure
CasingMetal throughout the whole casing
Camera Dimensions209.9 mm × 90.4 mm × 90.4 mm (8.26″ × 3.56″ × 3.56″)
Net Weight0.57 Kg (1.3 lb)
Gross Weight0.72 Kg (1.6 lb)
