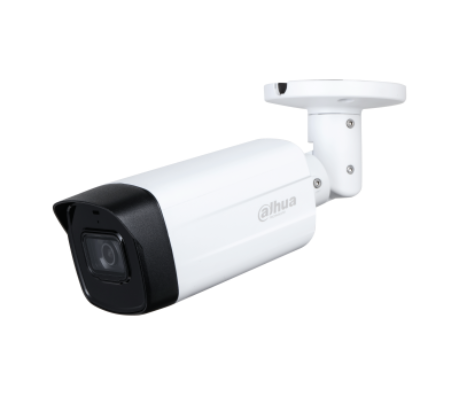

DAHUA HAC-HFW1200TM-A

2MP IR HDCVI Fixed-focal Bullet Camera

* The parameters and datasheets below can only be applied to1200-S6 series.

> Max. 30 fps@1080p.

> Smart IR Illumination.
> 80 m illumination distance.
> Super Adapt.
> Built-in Mic.
> 3.6 mm fixed lens (6 mm, 8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.





Specifications

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination Distance80 m (262.47 ft)
Illuminator On/Off ControlAuto
Illuminator Number2 (IR light)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length3.6 mm; 6 mm; 8 mm;
Max. ApertureF2.0
Field of View3.6 mm: H: 83°; V: 48°; D: 104°
6 mm: H: 47°; V: 27°; D: 54°
8 mm: H: 36°; V: 21°; D: 42°
Iris ControlFixed
Close Focus Distance0.7 m (2.30 ft); 2.3 m (7.55 ft); 3.6 m (11.81 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
3.6 mm50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

6 mm95.1 m

(312.01 ft)

38.0 m

(124.67 ft)

19.0 m

(62.34 ft)

9.5 m

(31.17 ft)

8 mm120.8 m

(396.33 ft)

48.3 m

(158.46 ft)

24.2 m

(79.40 ft)

12.1 m

(39.70 ft)

Video
Video Frame RateCVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/NightAuto(ICR)/Color/B/W
BLCBLC; HLC; DWDR
WDRDWDR
White BalanceAuto;Area white balance
Gain ControlAuto
Noise Reduction3D NR
Illumination ModeSmart IR
MirrorYes
Privacy MaskingOff/On (8 areas, rectangle)
Certification
CertificationsCE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic
Power
Power Supply12 VDC ± 30%
Power ConsumptionMax 4.9 W (12 VDC, IR on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity<95% (RH), non-condensing
ProtectionIP67
Structure
Casing MaterialMetal
Product Dimensions240.7 mm × 90.7 mm × 90.4 mm (9.48″ × 3.57″ × 3.56″)
Net Weight0.65 kg (1.43 lb)
Gross Weight0.90 kg (1.98 lb)
InstallationWall mount; ceiling mount; vertical pole mount
